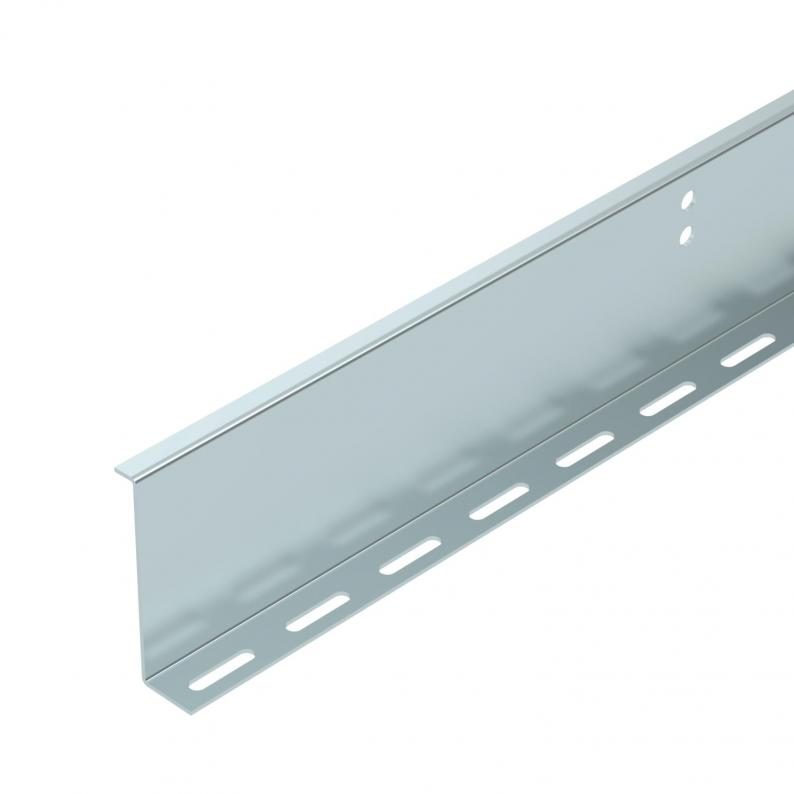

Barrier strip, Z-shaped 100 FS
Type TSG100Z BKRS FS | Item no. 6062390 | EAN 4012196341788
Item no. / Type
Length
Height
Smallest selling unit: 3 m
3m
Description
Barrier strip for the BKRS walkable cable tray system. Fastening with truss-head bolts M6 x 12 in the base perforation.
For widths of 200 mm or more, a barrier strip with a maximum compartment size of 220 mm should be used.
For widths of 500 mm or more, two barrier strips with a maximum compartment size of 220 mm should be used.
Technical data

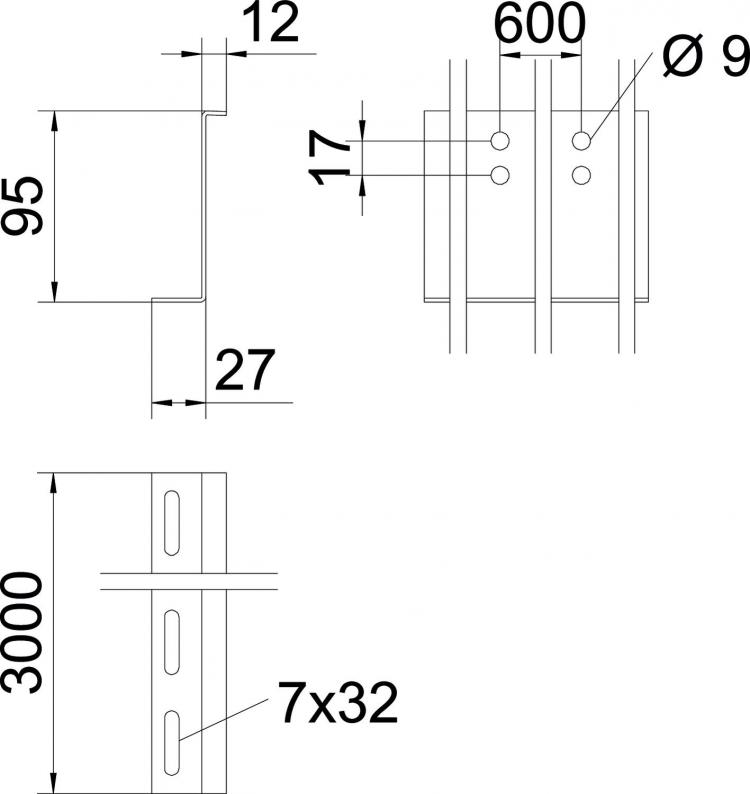

Dimensions
| Length | 3000 mm |
|---|---|
| Width | 34 mm |
| Height | 95 mm |
| Dimension L | 3000 mm |
| Dimension H | 100 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Rustproof steel, pickled | no |
| Plate thickness | 2 mm |
| Suitable for mesh cable tray | no |
| Suitable for cable ladder | no |
| Suitable for cable tray | yes |
| Fastening perforation (ETIM) | yes |
| Version for | Miscellaneous |
| Dimension | 100x2x3000 |
| Surface | Strip galvanized |
| Material | Steel |
| Colour | zinc |
| CO2 Footprint (GWP) Cradle-to-Gate | 4,3791 kg CO2e / 1 Meter |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (4)
Instructions and Aid (7)
Product images (2)
3D data downloads (1)
Tender specifications (2)
Variants
Type
Length
Height
Item no.
TSG100Z BKRS FS
3000
95
6062390
TSG110Z BKRS FS
3000
109
6062391
Height
TSG100Z BKRS FS
Item no.
6062390
Length
3000
Height
95
TSG110Z BKRS FS
Item no.
6062391
Length
3000
Height
109
