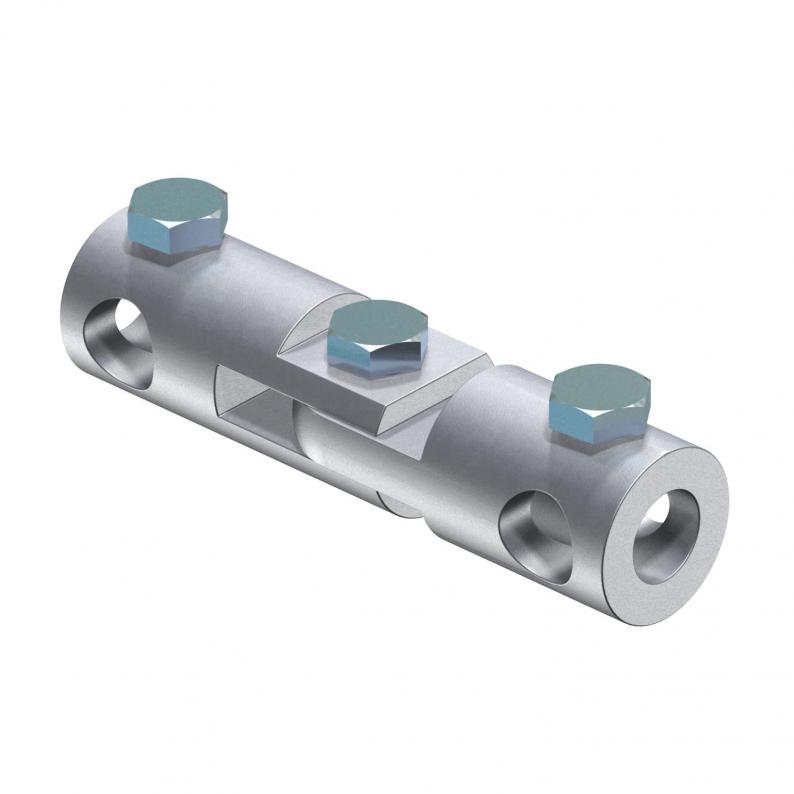

Articulated connector
Type 101 IGL-16 | Item no. 5408630 | EAN 4012195613312
Item no. / Type
5408630 / 101 IGL-16
Smallest selling unit: 10 piece
10piece
Description
101/IW-M10: Wall connection
• With M8 internal thread
• To mount insulating rod on structures or walls
• With M10 x 12 bolts
• With M8 internal thread
• To mount insulating rod on structures or walls
• With M10 x 12 bolts
Technical data

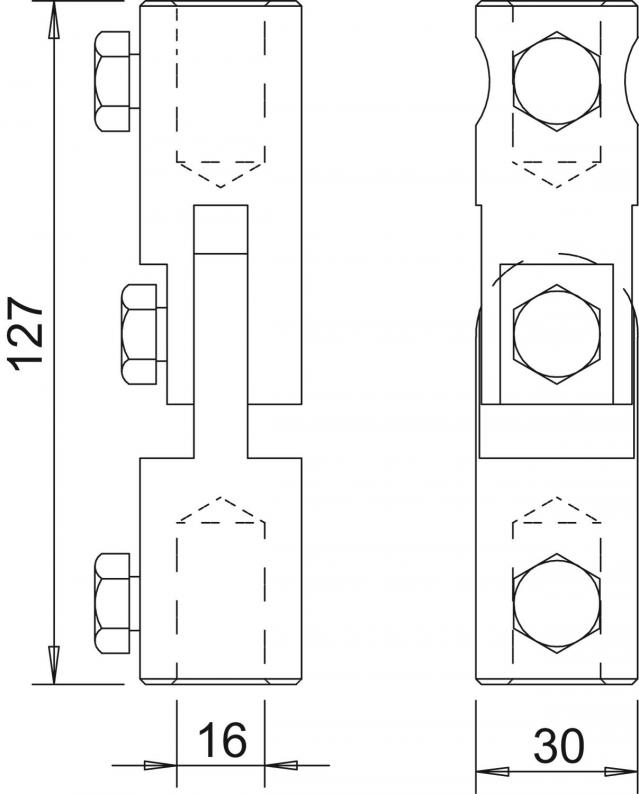

Dimensions
| Length | 127 mm |
|---|---|
| Dimension L | 127 mm |
| Dimension d Ø | 16 mm |
| Dimension d min. | 30 mm |
Technical data
| Connection | Round conductor |
|---|---|
| Dimension | 16mm |
| Material | Aluminium |
| CO2 Footprint (GWP) Cradle-to-Gate | 2,2468 kg CO2e / 1 Piece |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (2)
Product images (3)
3D data downloads (1)
Tender specifications (2)
Variants
Type
Dimension L
Dimension d Ø
Dimension d min.
Item no.
101 IGL-16
127
16
30
5408630
101 IGL-16
Item no.
5408630
Dimension L
127
Dimension d Ø
16
Dimension d min.
30
