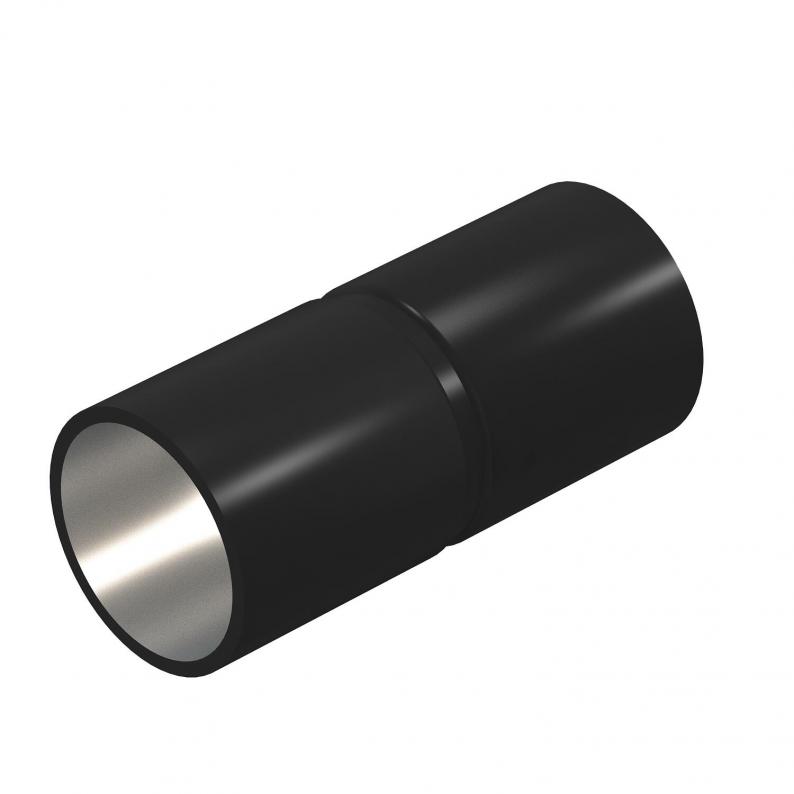

Armoured steel pipe connection sleeve without thread, black

Armoured steel pipe connection sleeve without thread, black

Type SV16W SW | Item no. 2046582 | EAN 4012195781776

Show all variants
Item no. / Type

Smallest selling unit: 25 piece

DescriptionTechnical dataDownloadsVariants

Description

Accessory part: plug-in sleeve for the connections between electrical installation pipes. With burr-free inner wall.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Function maintenance class E30
  • Function maintenance class E90
  • CO₂ footprint (PCF)
  • Packaging made entirely from recycled cardboard

Technical data

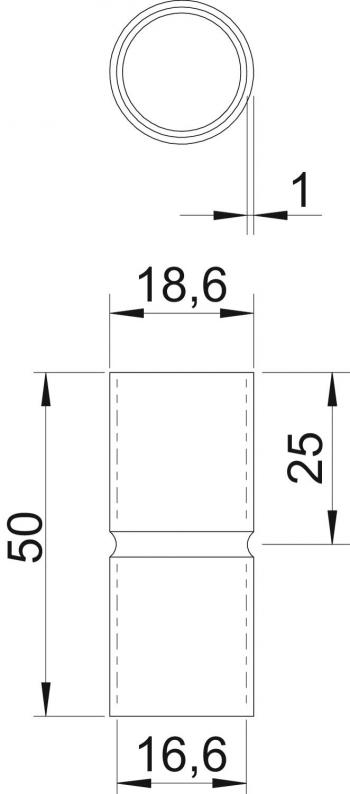

Dimensions

Length50 mm
Dimension L50 mm
Dimension d16,6 mm
Dimension t1 mm
Dimension m (mm)M16
Dimension l25 mm
Dimension D18,6 mm

Technical data

Halogen-freeyes
Size16
Polished surfaceno
Brushed surfaceno
for pipe diameter16 mm
With inspection opening and lidno
Two-partno
Version forConnector
Permitted temperature range, max.400 °C
Permitted temperature range, min.-45 °C
DimensionØ16mm
SurfacePES50 - Polyester/epoxy
MaterialSteel
ColourJet black; RAL 9005
CO2 Footprint (GWP) Cradle-to-Gate0,081 kg CO₂e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (6)
Declarations (4)
Product images (3)
3D data downloads (1)
Tender specifications (2)

Variants

SV16W SW
Item no.
2046582
SV20W SW
Item no.
2046583
SV25W SW
Item no.
2046584
SV32W SW
Item no.
2046585
SV40W SW
Item no.
2046586
SV50W SW
Item no.
2046587
SV63W SW
Item no.
2046588
