Angle profile WP40/65
Type WP 40 65 5000 FT | Item no. 6373070 | EAN 4012196199693
Item no. / Type
6373070 / WP 40 65 5000 FT
Smallest selling unit: 5 m
5m
Description

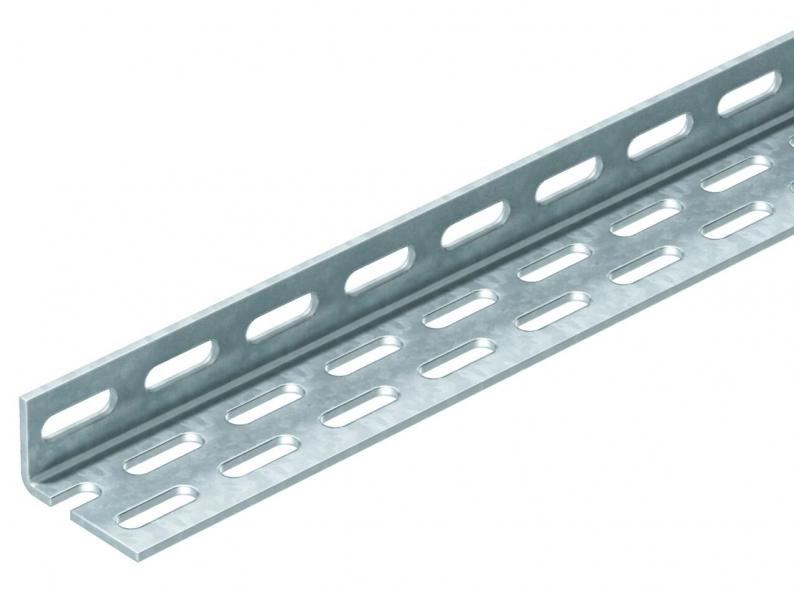

Perforated angle profile for creation of special support structures.
The angle profile can be used to create pendant suspensions.
Technical data

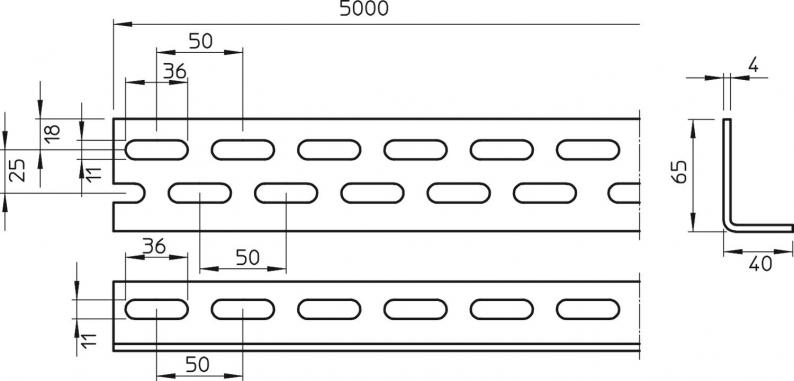

Dimensions
| Length | 5000 mm |
|---|---|
| Width | 65 mm |
| Height | 40 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Side perforation | yes |
| Plate thickness | 4 mm |
| Mounting perforation in base | yes |
| Type of perforation | 2 sides perforated |
| Breakable | no |
| With toothing | no |
| Version for | Single profile |
| Profile shape | L profile |
| Dimension | 40x65x5000 |
| Surface | Hot-dip galvanised |
| Material | Steel |
| Colour | zinc |
| CO2 Footprint (GWP) Cradle-to-Gate | 5,926 kg CO2e / 1 Meter |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (3)
Instructions and Aid (1)
Product images (2)
3D data downloads (2)
Tender specifications (2)
Variants
Type
Length
Plate thickness
Item no.
WP 40 65 5000 FT
5000
4
6373070
WP 40 65 5000 FT
Item no.
6373070
Length
5000
Plate thickness
4
