Angle profile WP40/50
Type WP 40 50 3000 FT | Item no. 6373200 | EAN 4012196169160
Item no. / Type
6373200 / WP 40 50 3000 FT
Smallest selling unit: 3 m
3m
Description

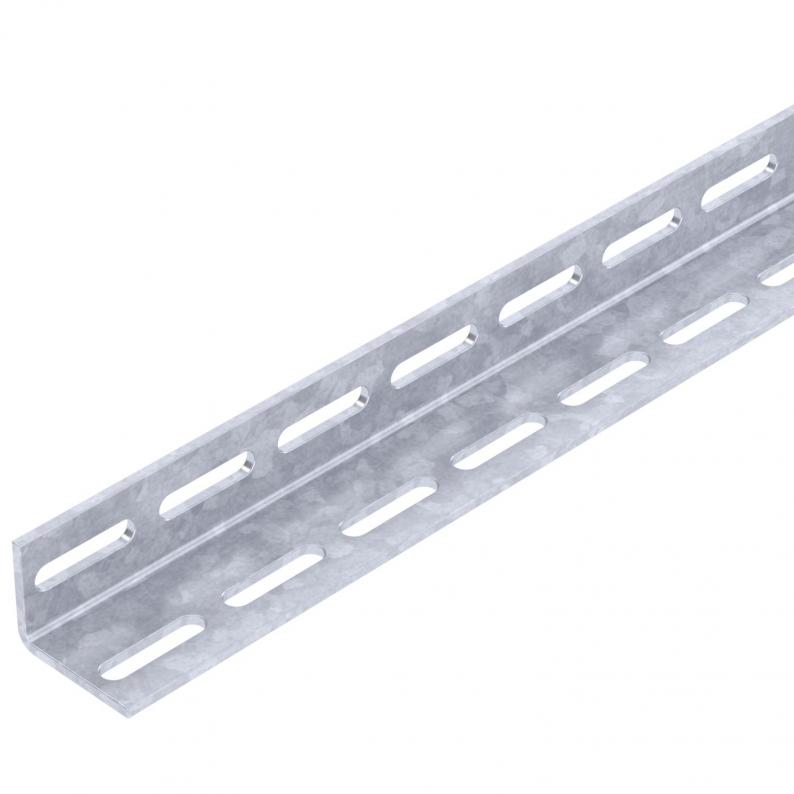

Perforated angle profile for the creation of special support structures.
The angle profile can be used to create pendant suspensions.
Technical data

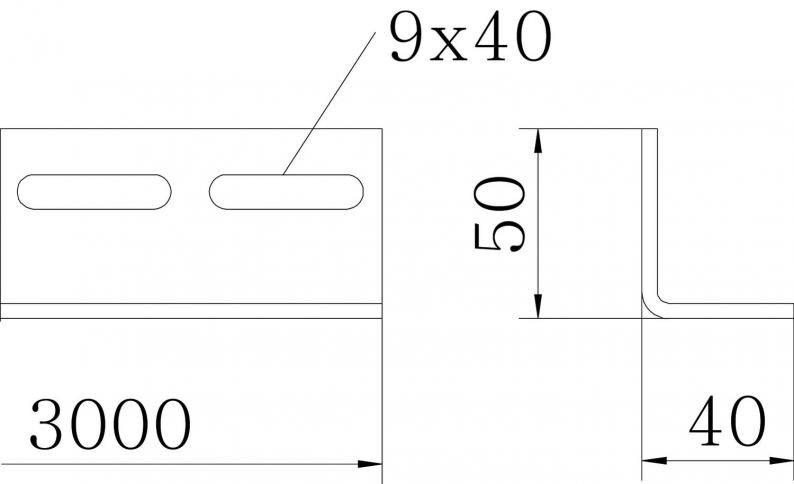

Dimensions
| Length | 3000 mm |
|---|---|
| Width | 50 mm |
| Height | 40 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Side perforation | yes |
| Plate thickness | 4 mm |
| Mounting perforation in base | yes |
| Type of perforation | 2 sides perforated |
| Breakable | no |
| With toothing | no |
| Version for | Single profile |
| Profile shape | L profile |
| Dimension | 40x50x3000 |
| Surface | Hot-dip galvanised |
| Material | Steel |
| Colour | zinc |
| CO2 Footprint (GWP) Cradle-to-Gate | 5,9935 kg CO2e / 1 Meter |
