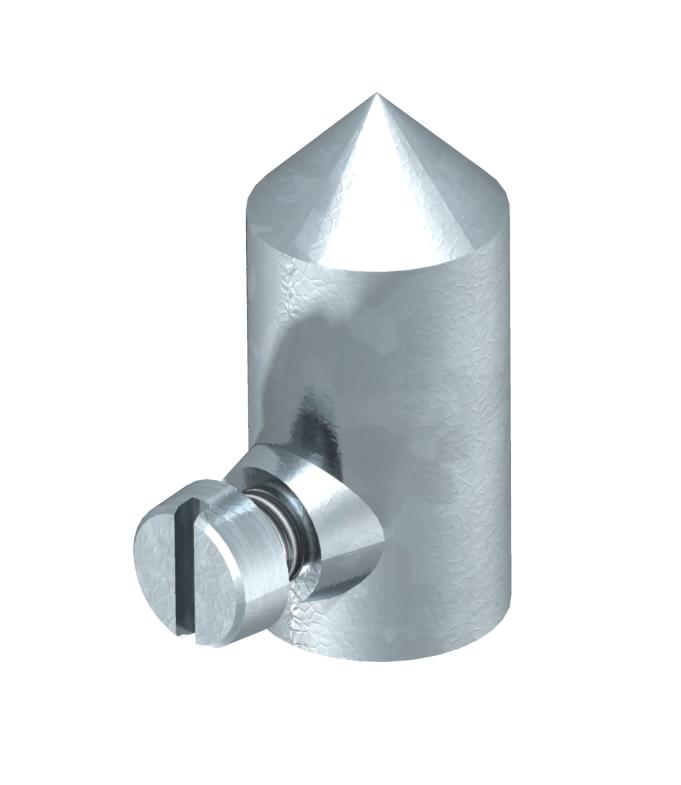

Air-termination tip

Type 120 A | Item no. 5405068 | EAN 4012195428657

Item no. / Type

5405068 / 120 A

Smallest selling unit: 10 piece

Description

• To be used for Rd 8−10 (corrosion protection)
• With cylinder bolt M6 x 10
• Made of die-cast zinc, bolts made of hot-galvanised steel

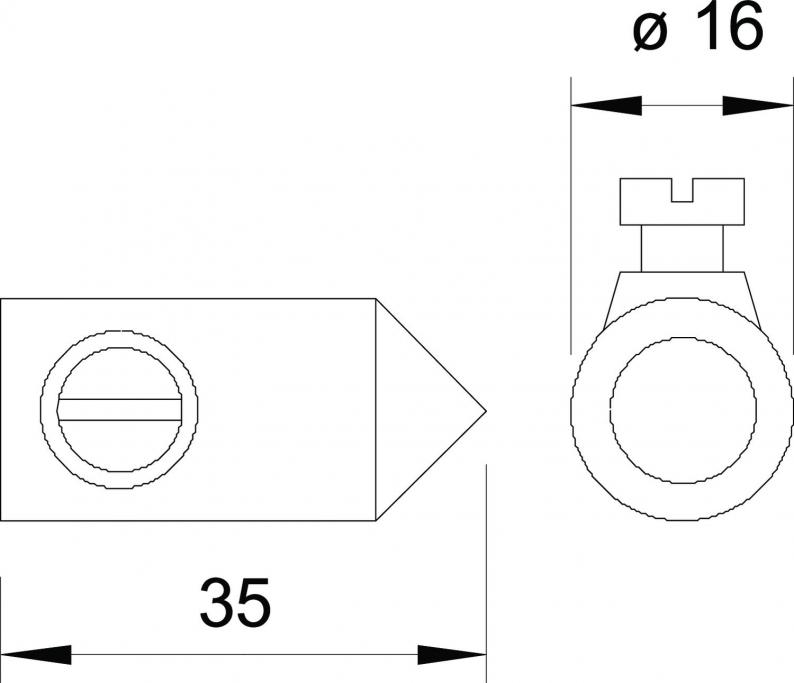

Length	35 mm

Diameter	16 mm
Version for	Air-termination tip
Fit	Rd 8-10 mm
Dimension	35mm
Surface	Electrogalvanized
Material	Die-cast zinc
CO2 Footprint (GWP) Cradle-to-Gate	0,1305 kg CO2e / 1 Piece
