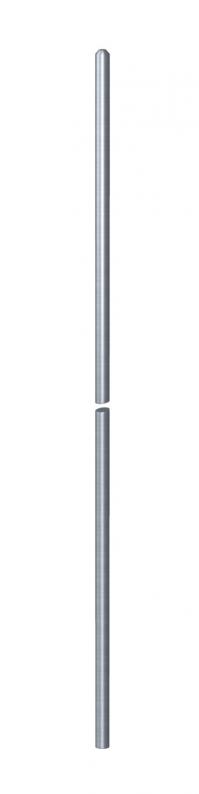

Air-termination rod for FangFix-Junior

Type 101 J1000 | Item no. 5401970 | EAN 4012195034810

Item no. / Type

5401970 / 101 J1000

Smallest selling unit: 10 piece

Description

• Suitable for wind loads according to Eurocode 1: DIN EN 1991-1-4

• Ø 10 mm, aluminium

• Without thread

• Suitable for use in FangFix-Junior

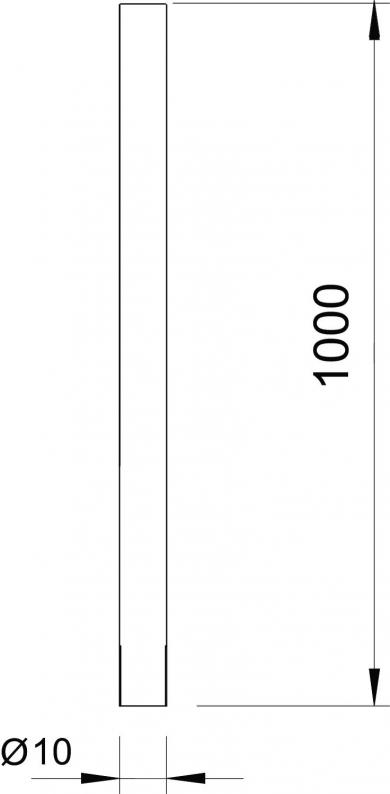

Length	1000 mm

Nominal size Ø	10 mm
High voltage-resistant, insulated version	no
Connection	Round conductor
Version for	Air-termination rod
Dimension	1000mm
Material	Aluminium
CO2 Footprint (GWP) Cradle-to-Gate	2,7543 kg CO2e / 1 Piece
