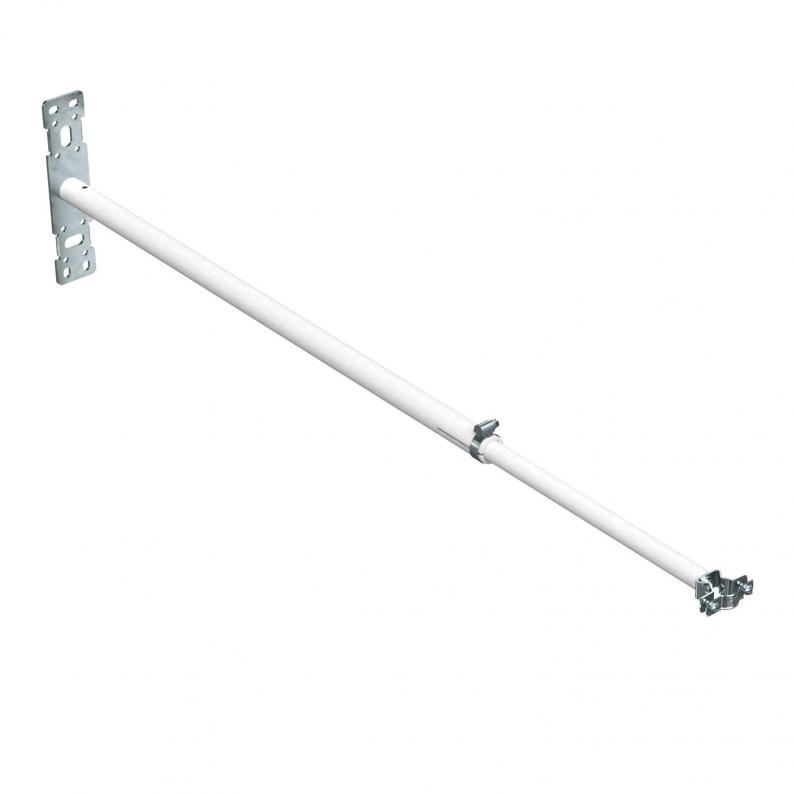

Adjustable insulating beam − wall
Type ISAV1000W
|Item no. 5408852
|EAN 4012195009733
Item no. / Type
5408852 / ISAV1000W
Smallest selling unit: 1 piece
1piece
piece
Description
Variable spacer for conductors and air-termination rods to maintain the
separation distance.
• Infinitely adjustable distance range
(L = 550−1,000 mm)
• Made of fibre-glass-reinforced plastic (km = 0.7)
• For wall mounting with 10 fastening holes (4.2 mm)
and 4 fastening holes (6.9 mm)
separation distance.
• Infinitely adjustable distance range
(L = 550−1,000 mm)
• Made of fibre-glass-reinforced plastic (km = 0.7)
• For wall mounting with 10 fastening holes (4.2 mm)
and 4 fastening holes (6.9 mm)
Technical data

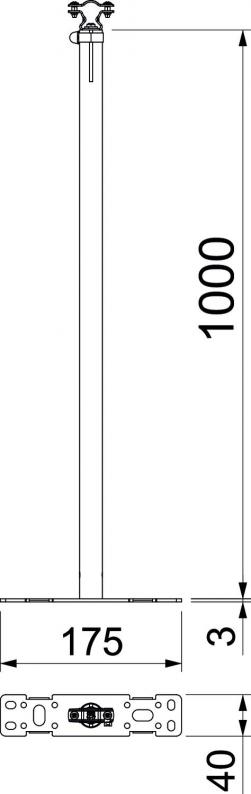

Dimensions
| Width | 175 mm |
|---|---|
| Height | 40 mm |
Technical data
| Dimension | 550-1000mm |
|---|---|
| Material | Fibre-glass-reinforced plastic |
| CO2 Footprint (GWP) Cradle-to-Gate | 6,1884 kg CO2e / 1 Piece |
