Adjustable insulating beam − pipe
Type ISAV1000R
|Item no. 5408849
|EAN 4012195004608
Item no. / Type
5408849 / ISAV1000R
Smallest selling unit: 1 piece
1piece
piece
Description

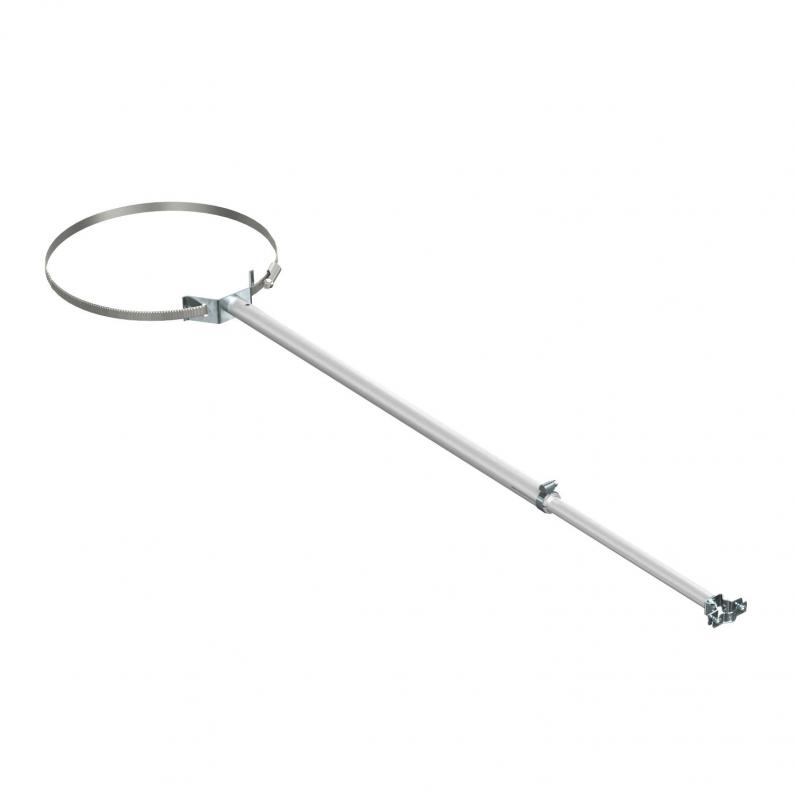

Insulated spacer for cables and air-termination rods for insulated air-termination devices, to maintain the separation distance. Infinitely adjustable distance range. For mounting with tightening strap on pipes with Ø ≤ 600 mm. Including tension jack.
Technical data

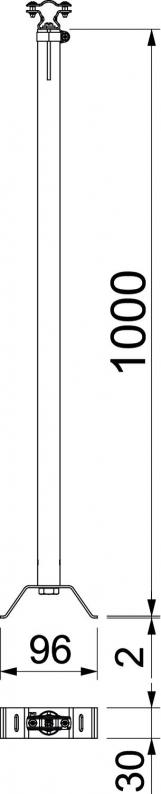

Dimensions
| Width | 96 mm |
|---|---|
| Height | 30 mm |
Technical data
| Dimension | 550-1000mm |
|---|---|
| Material | Fibre-glass-reinforced plastic |
| CO2 Footprint (GWP) Cradle-to-Gate | 6,1768 kg CO2e / 1 Piece |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (2)
Product images (2)
3D data downloads (1)
Tender specifications (2)
Variants
Type
Item no.
ISAV1000R
5408849
ISAV1000R
Item no.
5408849
