Adjustable connector FT
Type RGV 85 FT | Item no. 7082320 | EAN 4012196230891
Item no. / Type
7082320 / RGV 85 FT
Colour
zinc
Smallest selling unit: 10 piece
10piece
Description

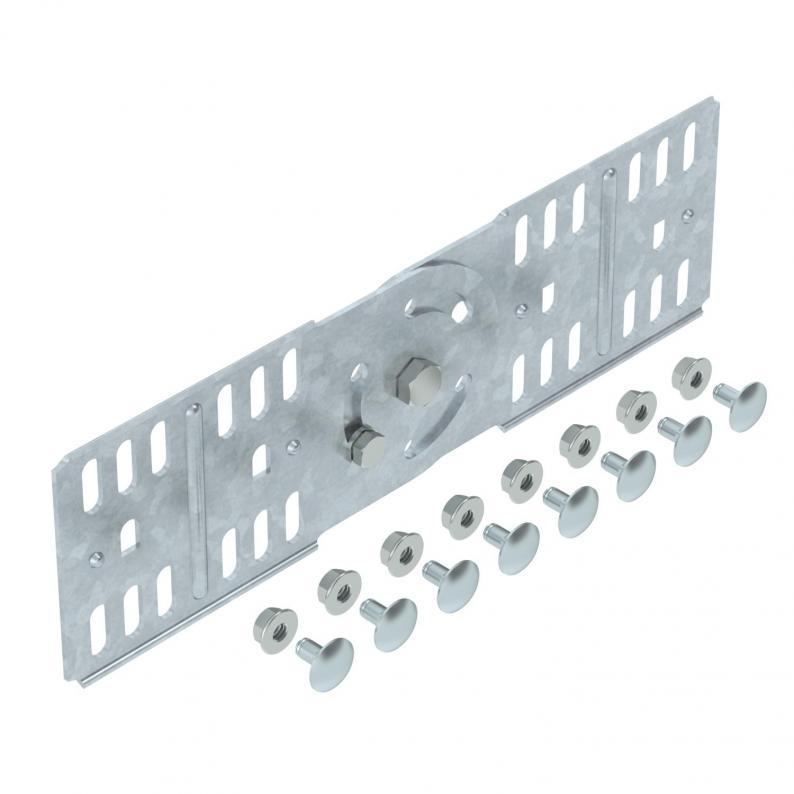

Adjustable connector for cable trays with a side height of 85 mm.
Including appropriate fastening material.
Technical data
Dimensions
| Length | 272 mm |
|---|---|
| Width | 16 mm |
| Height | 85 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Rustproof steel, pickled | no |
| Plate thickness | 2 mm |
| Suitable for mesh cable tray | no |
| Suitable for cable ladder | no |
| Suitable for cable tray | yes |
| Adjustable connector, horizontal | no |
| Articulated connector, vertical | yes |

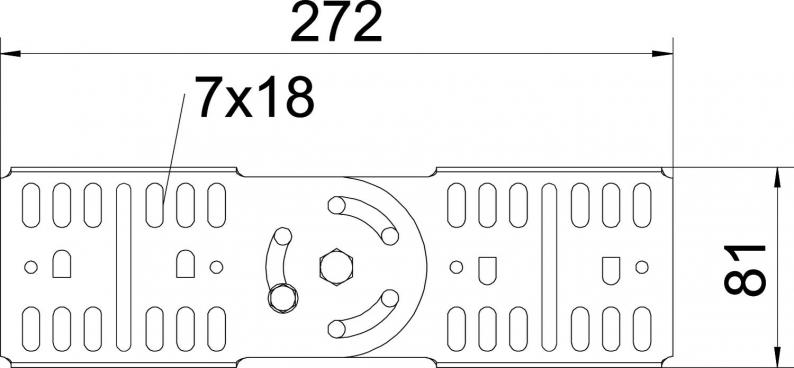

| Dimension | 272 x 81 |
| Suitable for cable tray system height | 85 mm |
| Version for | Straight connector |
| Connection type | Screw connector |
| Dimension | 85x270 |
| Surface | Hot-dip galvanised |
| Material | Steel |
| Colour | zinc |
| CO2 Footprint (GWP) Cradle-to-Gate | 1,1388 kg CO2e / 1 Piece |
