Adjustable connector 60 A4
Type RGV 60 A4 | Item no. 7082265 | EAN 4012196080113
Item no. / Type
7082265 / RGV 60 A4
Colour
stainless steel
Smallest selling unit: 10 piece
10piece
Description

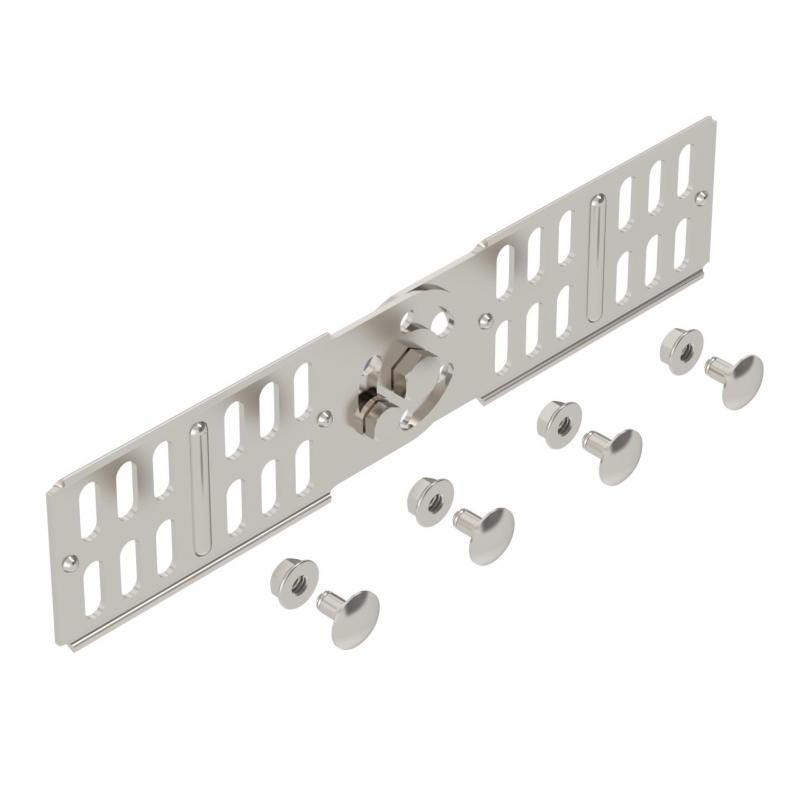

Adjustable connector for cable trays with a side height of 60 mm.
Including appropriate fastening material.
Technical data

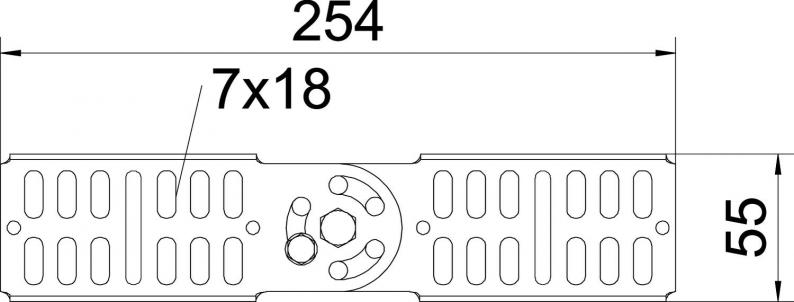

Dimensions
| Length | 254 mm |
|---|---|
| Width | 16 mm |
| Height | 60 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Plate thickness | 1,5 mm |
| Suitable for mesh cable tray | no |
| Suitable for cable ladder | no |
| Suitable for cable tray | yes |
| Adjustable connector, horizontal | no |
| Articulated connector, vertical | yes |
| Dimension | 210 x 56,5 x 1,5 |
| Suitable for cable tray system height | 60 mm |
| Version for | Straight connector |
| Connection type | Screw connector |
| Dimension | 60x260 |
| Surface | Bright, treated |
| Material | Stainless steel 1.4571 |
| Colour | stainless steel |
| CO2 Footprint (GWP) Cradle-to-Gate | 1,6543 kg CO2e / 1 Piece |
