Adjustable connector 110 A2
Type RGV 110 A2
|Item no. 7082479
|EAN 4012196986361
Item no. / Type
7082479 / RGV 110 A2
Colour
stainless steel
Smallest selling unit: 4 piece
4piece
piece
Description

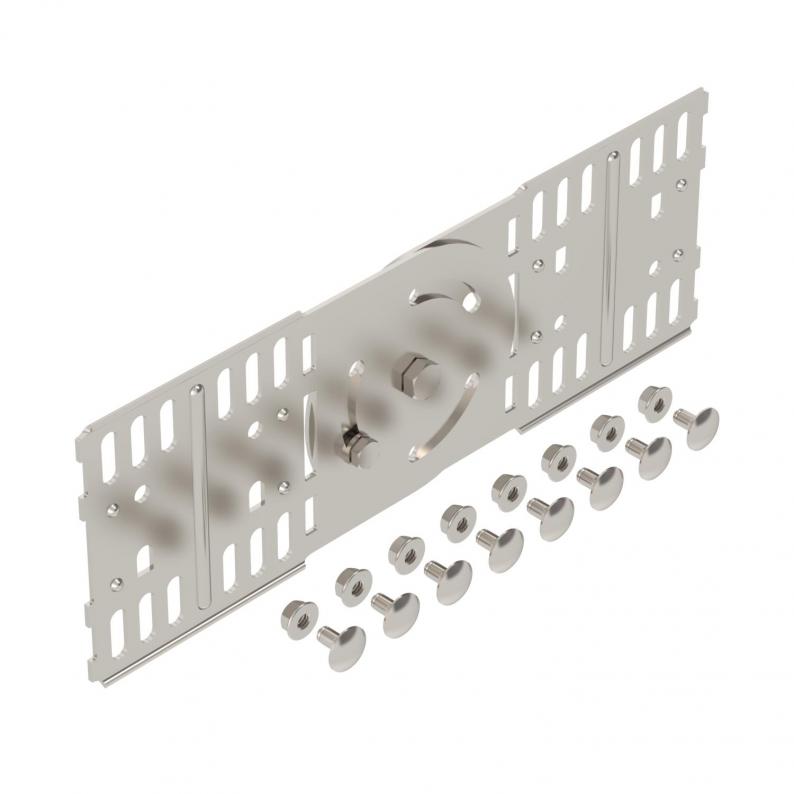

Adjustable connector for cable trays with a side height of 110 mm.
Technical data

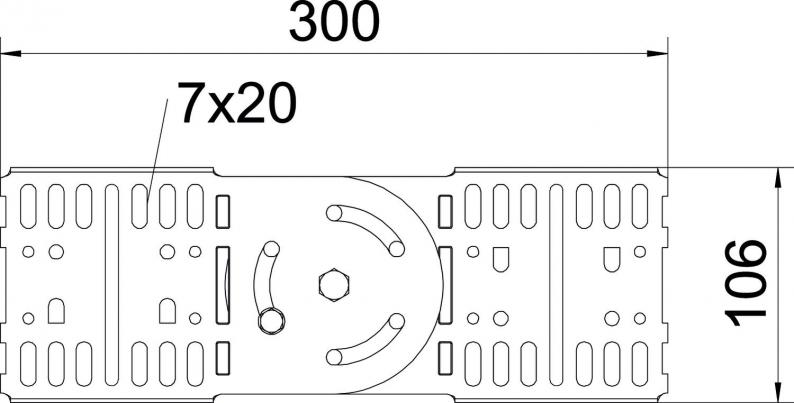

Dimensions
| Length | 300 mm |
|---|---|
| Width | 16 mm |
| Height | 110 mm |
Materials and Packaging
| Packaging made completely from recycled cardboard. | yes |
|---|
Technical data
| Maintain electrical functions | no |
|---|---|
| Wide-span version | no |
| Rustproof steel, pickled | no |
| Plate thickness | 2 mm |
| Suitable for mesh cable tray | no |
| Suitable for cable ladder | no |
| Suitable for cable tray | yes |
| Adjustable connector, horizontal | no |
| Articulated connector, vertical | yes |
| Dimension | 300 x 106 |
| Suitable for cable tray system height | 110 mm |
| Version for | Straight connector |
| Connection type | Screw connector |
| Dimension | 110x300 |
| Surface | Bright, treated |
| Material | Stainless steel 1.4301 |
| Colour | stainless steel |
CO2 footprint (Product Carbon Footprint)
| CO2 Footprint (GWP) Cradle-to-Gate | 3,8226 kg CO2e / 1 Piece |
|---|
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (3)
Declarations (4)
Instructions and Aid (4)
Product images (2)
Tender specifications (2)
Variants
Type
Height
Plate thickness
Colour
Item no.
RGV 110 A2
110
2
stainless steel
7082479
RGV 110 A2
Item no.
7082479
Height
110
Plate thickness
2
Colour
stainless steel
