Add-on tee 60 FT
Type RAA 615 FT | Item no. 7121205 | EAN 4012196027002
Item no. / Type
Width
This item is a discontinued product!
You can find the successor product here.
Smallest selling unit: 1 piece
1piece
Description

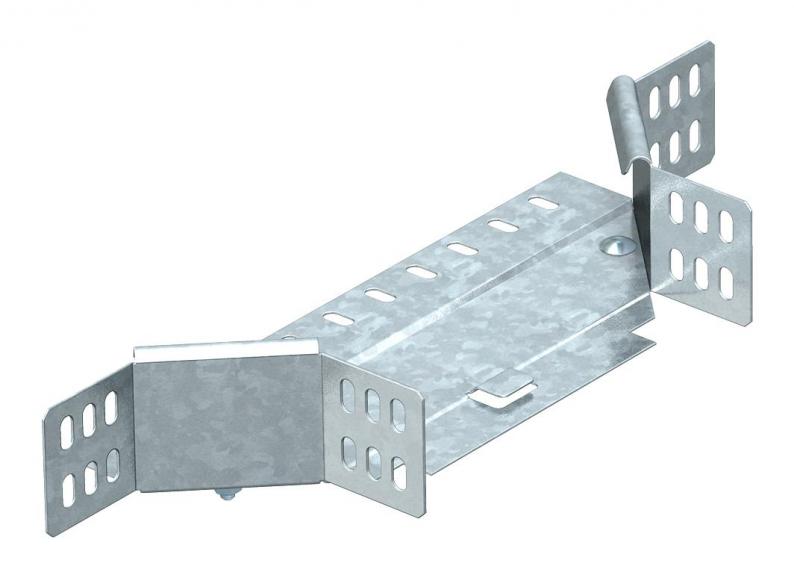

Add-on tee for horizontal and vertical use. For all cable tray types of 60 mm side height.
The fitting is shipped in an unmounted state.
Including appropriate fastening material.
Technical data

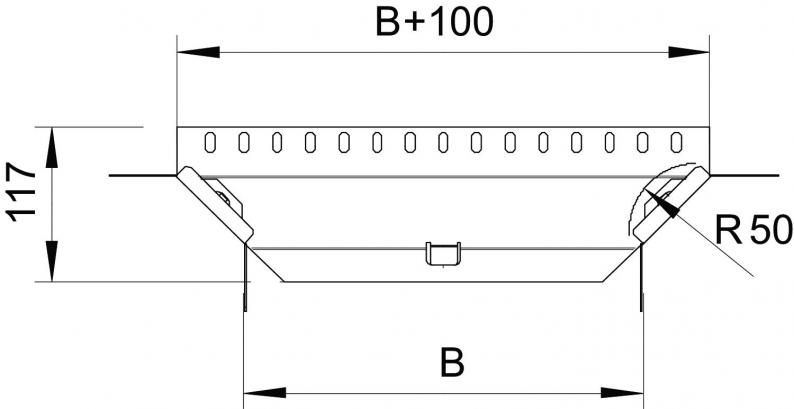

Dimensions
| Width | 150 mm |
|---|---|
| Height | 60 mm |
| Dimension B | 150 mm |
| Dimension R | 50 mm |
Technical data
| Maintain electrical functions | yes |
|---|---|
| Connector version | Supplied connectors |
| Wide-span version | no |
| Rustproof steel, pickled | no |
| NATO hole pattern | no |
| Material thickness, floor plate | 1 mm |
| Bend (angle) | 90° |
| Change of direction | Horizontal |
| Rail thickness | 1,25 mm |
| Dimension | 60x150 |
| Surface | Hot-dip galvanised |
| Material | Steel |
| Type of connector, cable support system | Screwed |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (4)
Instructions and Aid (2)
Product images (2)
3D data downloads (2)
Tender specifications (2)
Variants
Type
Width
Item no.
RAA 610 FT
100
7121109
RAA 615 FT
150
7121205
RAA 620 FT
200
7121210
RAA 630 FT
300
7121318
Width
RAA 610 FT
Item no.
7121109
Width
100
RAA 615 FT
Item no.
7121205
Width
150
RAA 620 FT
Item no.
7121210
Width
200
RAA 630 FT
Item no.
7121318
Width
300
