Add-on tee 110 FT
Type RAA 150 FT | Item no. 7123507 | EAN 4012196247158
Item no. / Type
Width
This item is a discontinued product!
You can find the successor product here.
Smallest selling unit: 1 piece
1piece
Description

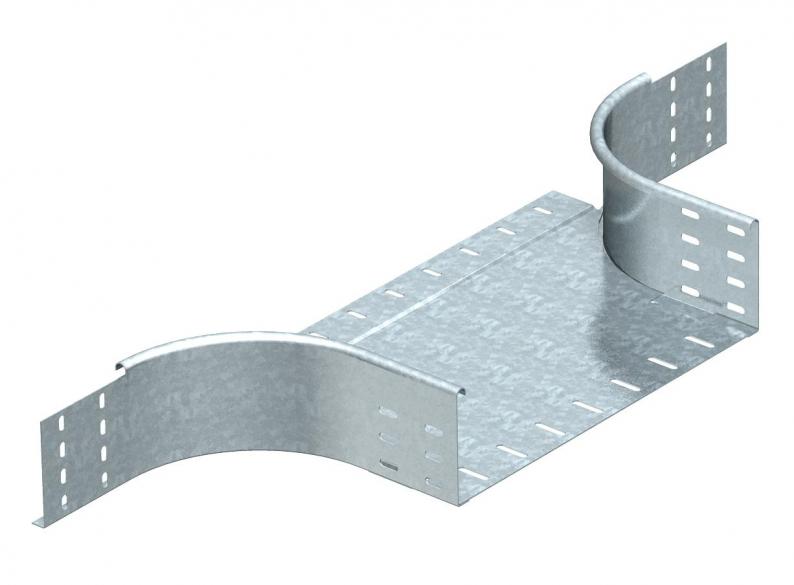

Add-on tee for horizontal and vertical use. For all cable tray types of 110 mm side height.
Fastening materials should be ordered separately.
Technical data

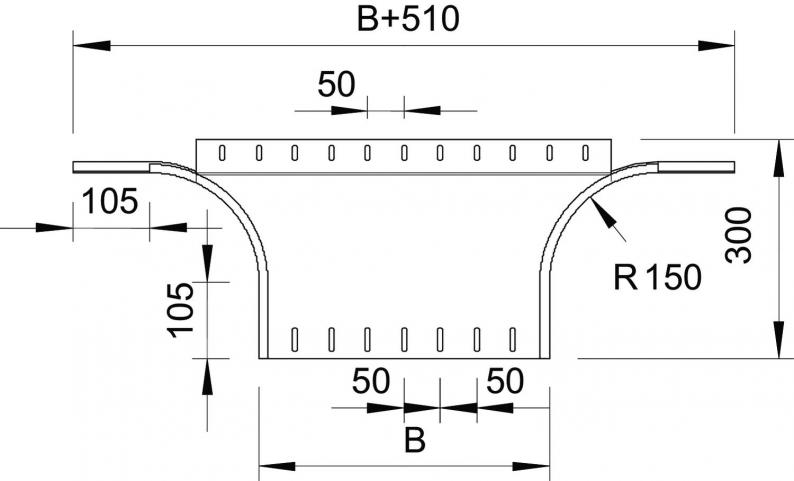

Dimensions
| Width | 500 mm |
|---|---|
| Height | 110 mm |
| Dimension B | 500 mm |
| Dimension R | 150 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Connector version | Without connectors |
| Wide-span version | no |
| Rustproof steel, pickled | no |
| NATO hole pattern | no |
| Material thickness, floor plate | 1,5 mm |
| Bend (angle) | 90° |
| Change of direction | Horizontal |
| Rail thickness | 1,25 mm |
| Permitted temperature range, max. | 120 °C |
| Permitted temperature range, min. | -20 °C |
| Dimension | 110x500 |
| Surface | Hot-dip galvanised |
| Material | Steel |
| Type of connector, cable support system | Screwed |
