Add-on tee 110 FT

Add-on tee 110 FT

Type LAA 1120 R3 FT | Item no. 6225930 | EAN 4012196445554

Show all variants
Item no. / Type
Width

Smallest selling unit: 1 piece

DescriptionTechnical dataDownloadsAccessoriesVariants

Description

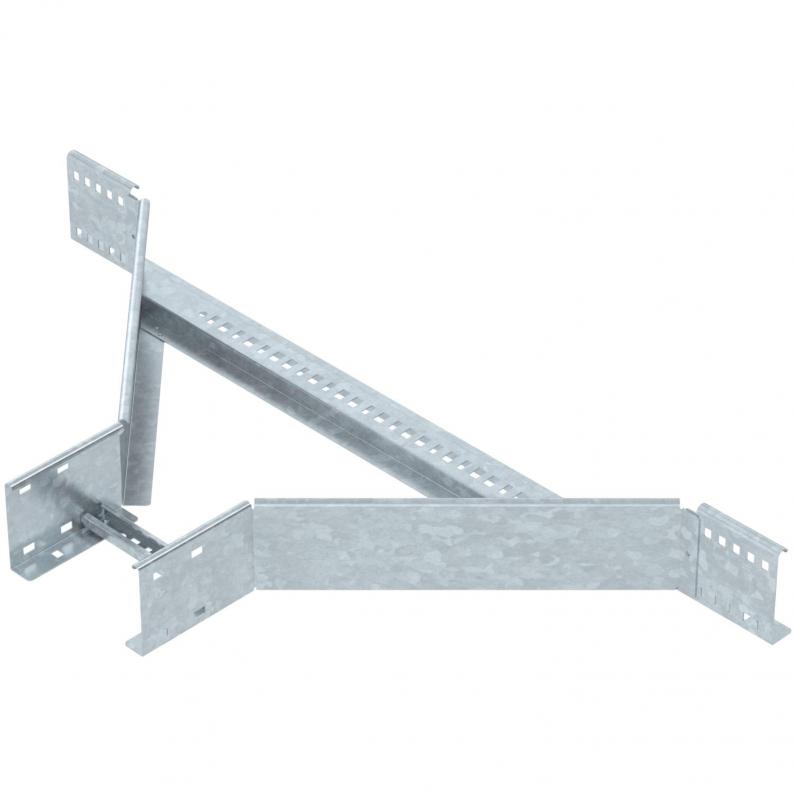

Add-on tee with welded rung for all cable ladder types of 110 mm side height.

Connectors should be ordered separately and in the appropriate quantity.

  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)

Technical data

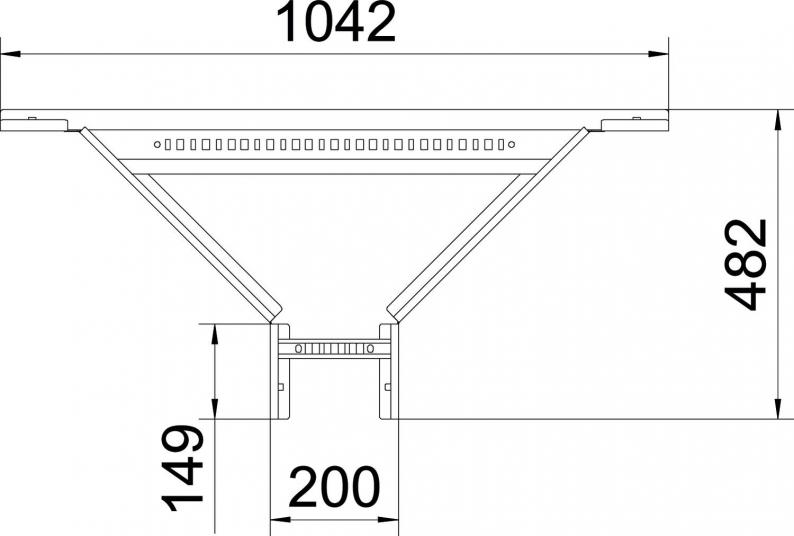

Dimensions

Width200 mm
Height110 mm
Dimension B200 mm
Dimension R300 mm

Technical data

Maintain electrical functionsno
Connector versionWithout connectors
Wide-span versionno
Rustproof steel, pickledno
Version of the rungsProfile perforated
Side rail versionFlat profile
Rail thickness1,5 mm
Dimension110x200
SurfaceHot-dip galvanised
MaterialSteel
Colourzinc
CO2 Footprint (GWP) Cradle-to-Gate11,4373 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (3)
Declarations (4)
Instructions and Aid (2)
Product images (2)
3D data downloads (1)
Tender specifications (2)

Accessories

Mounting accessories

Item no. 6216548

Straight connector FT
Type
LVG 110 FT

Smallest selling unit: 10 piece

Variants

Width
LAA 1120 R3 FT
Item no.
6225930
Width
200
LAA 1130 R3 FT
Item no.
6225932
Width
300
LAA 1140 R3 FT
Item no.
6225934
Width
400
LAA 1145 R3 FT
Item no.
6225936
Width
450
LAA 1150 R3 FT
Item no.
6225938
Width
500
LAA 1160 R3 FT
Item no.
6225940
Width
600
