Adapter plate 45°
Type KA-E 45 FT | Item no. 6346758 | EAN 4012196340156
Item no. / Type
6346758 / KA-E 45 FT
Smallest selling unit: 1 piece
1piece
Description
Adapter plate with slots for universal fastening to vertical steel girders and walls. Wall and support brackets are screwed to the adapter plate at a 45° angle.
To support cable support systems in building corners and jumps. The hexagonal bolts, type SKS 12 x 40 GF, are used to fasten the brackets to the adapter plate. Please order the appropriate quantity.
Technical data

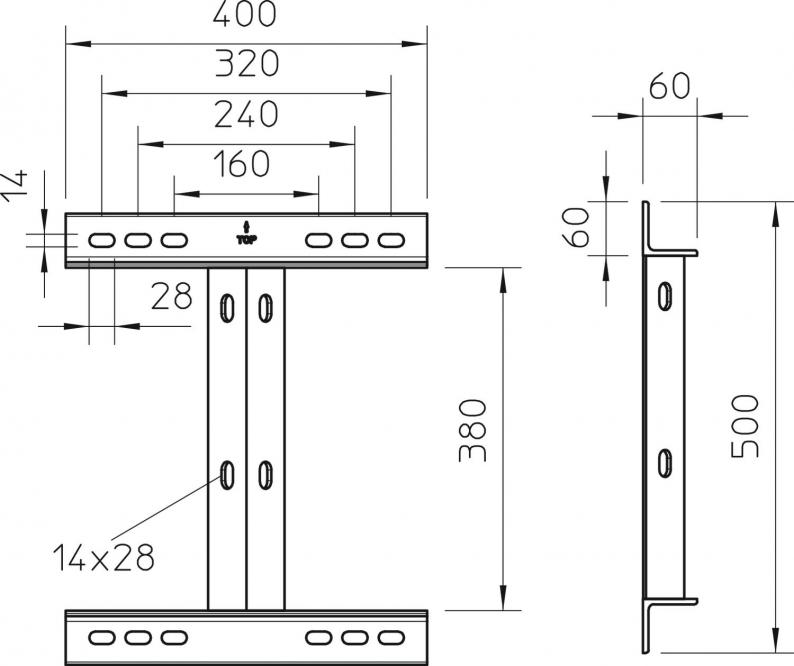

Dimensions
| Length | 60 mm |
|---|---|
| Width | 400 mm |
| Height | 500 mm |
| Dimension L | 60 mm |
| Dimension B | 400 mm |
| Dimension H | 500 mm |
Technical data
| Dimension | 400x106 |
|---|---|
| Surface | Hot-dip galvanised |
| Material | Steel |
| Colour | zinc |
| CO2 Footprint (GWP) Cradle-to-Gate | 13,449 kg CO2e / 1 Piece |
