Accessory mounting box, double
Type 7GD7Z
|Item no. 6288561
|EAN 4012195148555
Item no. / Type
6288561 / 7GD7Z
Number of units
2
Accessory mounting type
Bolts
This item is a discontinued product!
Smallest selling unit: 2 piece
2piece
piece
Description

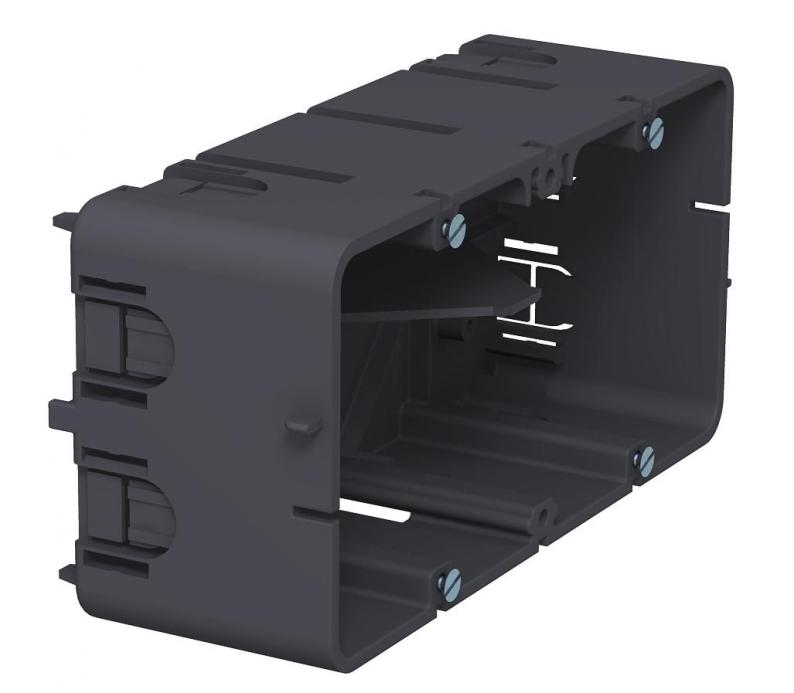

Double accessory mounting box for the installation of two installation units and cover by central insert.
Technical data

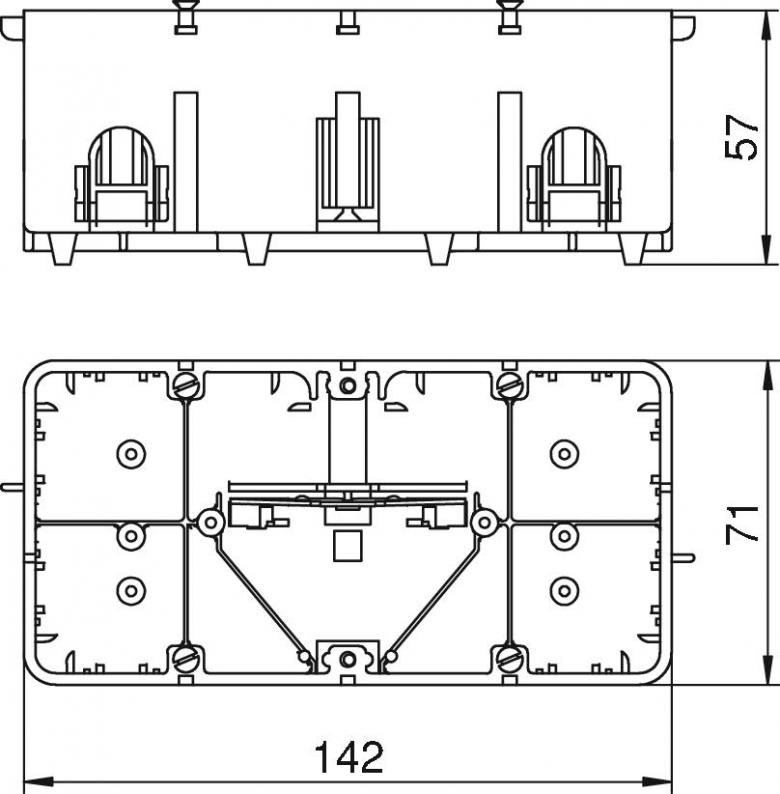

Dimensions
| Length | 142 mm |
|---|---|
| Width | 71 mm |
| Height | 57 mm |
Technical data
| Halogen-free | yes |
|---|---|
| Number of units | 2 |
| Strain relief option | yes |
| With connection compartment | yes |
| Fastening track | Other |
| Box mounting type | Rear wall |
| Accessory mounting type | Bolts |
| Device type | Miscellaneous |
| Version for | Closed |
| Dimension | 57x71x142 |
| Material | Polyamide |
| Colour | Graphite black; RAL 9011 |
Environmental Data
0,4208 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| Packaging without plastic | yes |
|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 0,4208 kg CO2e / 1 Piece |
|---|
