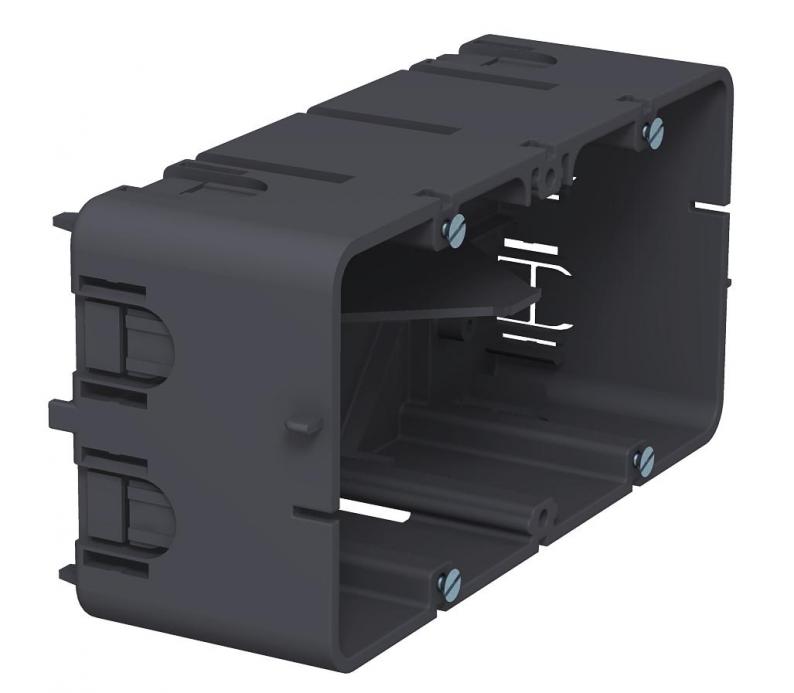

Accessory mounting box, double
Type 7GD8Z
|Item no. 6288560
|EAN 4012195148548
Item no. / Type
6288560 / 7GD8Z
Number of units
2
Accessory mounting type
Bolts
This item is a discontinued product!
Smallest selling unit: 2 piece
2piece
piece
Description
Double accessory mounting box for the installation of two installation devices (central insert and frame) in device installation trunking and service poles with 110 mm system opening.
Technical data

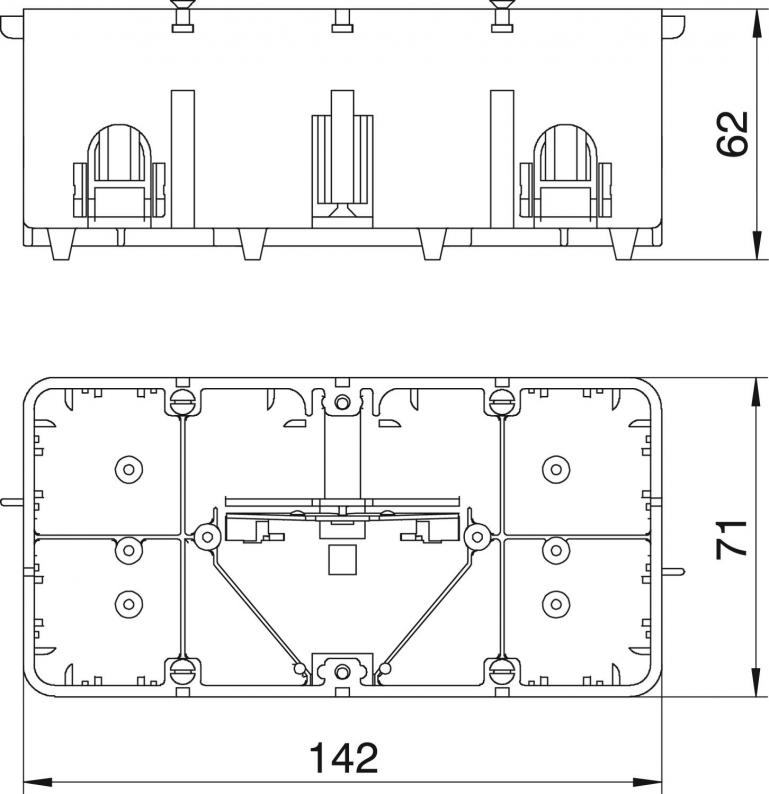

Dimensions
| Length | 142 mm |
|---|---|
| Width | 71 mm |
| Height | 62 mm |
Technical data
| Halogen-free | yes |
|---|---|
| Number of units | 2 |
| Strain relief option | yes |
| With connection compartment | yes |
| Fastening track | Other |
| Box mounting type | Rear wall |
| Accessory mounting type | Bolts |
| Device type | Miscellaneous |
| Version for | Closed |
| Dimension | 62x71x142 |
| Material | Polyamide |
| Colour | Iron grey; RAL 7011 |
Environmental Data
0,4199 kg CO₂e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 0,4199 kg CO₂e / 1 Piece |
|---|
