Accessory mounting box CEE, 16 A
Type CEE16E2 | Item no. 6288612 | EAN 4012195148715
Item no. / Type
6288612 / CEE16E2
Smallest selling unit: 1 piece
1piece
Description

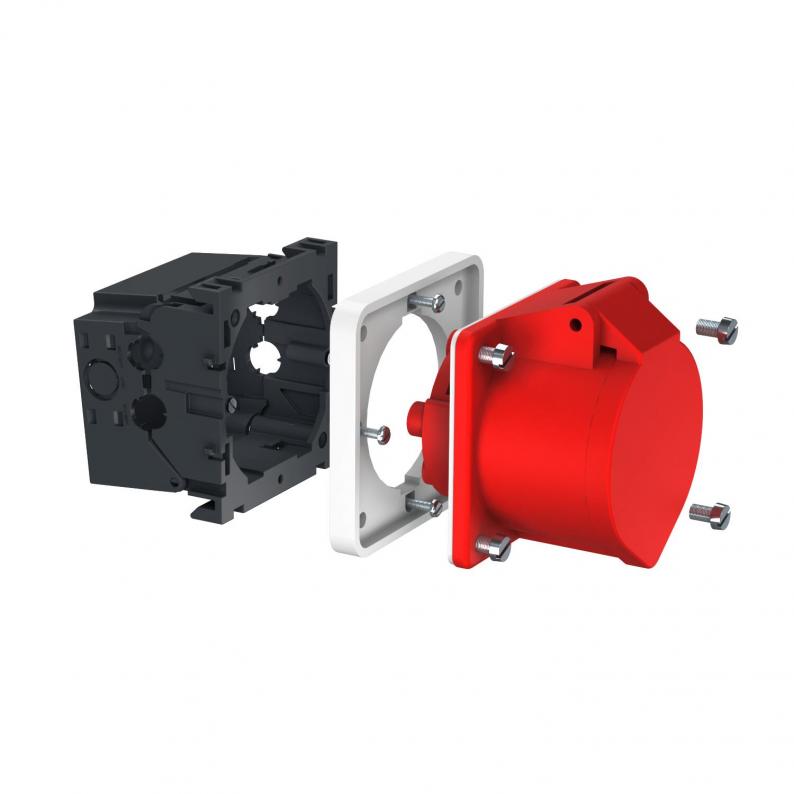

Accessory mounting box, complete, for the installation of a CEE connection device in device installation trunking with 80 mm cover, consisting of:
- Front locking device installation trunking
- CEE connection unit and mounting material
- CEE socket 16 A
For installation in Rapid 80 device installation trunking and ISS service poles.
- Front locking device installation trunking
- CEE connection unit and mounting material
- CEE socket 16 A
For installation in Rapid 80 device installation trunking and ISS service poles.
Technical data
Technical data
| Halogen-free | no |
|---|---|
| Number of units | 1 |
| Strain relief option | no |
| With connection compartment | yes |
| Fastening track | Other |
| Device type | CEE |
| Version for | Closed |
| Material | Polyamide |
| Colour | Iron grey; RAL 7011 |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,3803 kg CO₂e / 1 Piece |
