Accessory mounting box, British Standard, double
Type 71GDBS2
|Item no. 6288586
|EAN 4012196429851
Item no. / Type
6288586 / 71GDBS2
Number of units
2
Accessory mounting type
Bolts
Smallest selling unit: 10 piece
10piece
piece
Description

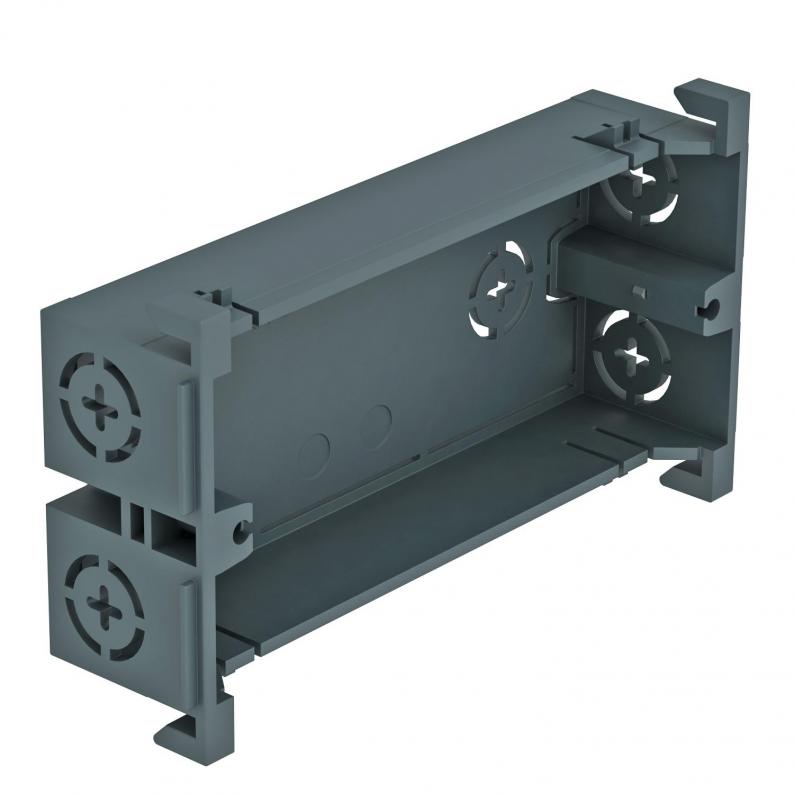

Front-locking, double device installation socket for British Standard switch systems. Insertion opening for cable diameters of max. 17 mm. Can be used in all device installation trunking of the Rapid 80 series and ISS service poles with 76.5 mm system opening.
Technical data

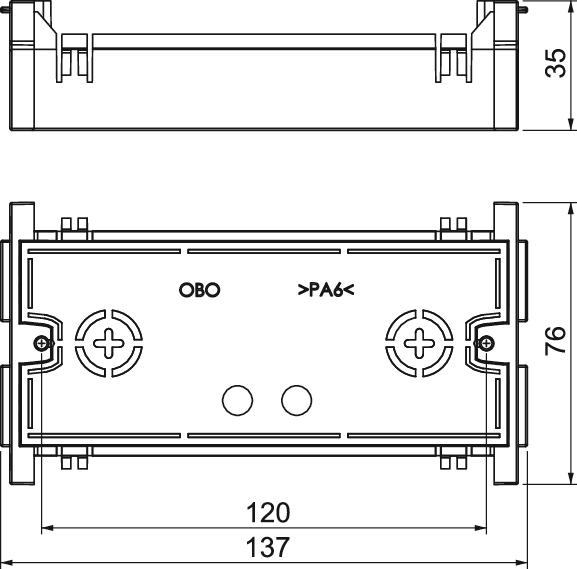

Dimensions
| Length | 137 mm |
|---|---|
| Width | 76 mm |
| Height | 35 mm |
Technical data
| Halogen-free | yes |
|---|---|
| Number of units | 2 |
| Strain relief option | yes |
| With connection compartment | yes |
| Fastening track | Other |
| Box mounting type | Front |
| Accessory mounting type | Bolts |
| Device type | Miscellaneous |
| Version for | Closed |
| Dimension | 35x76x137 |
| Material | Polyamide |
| Colour | Iron grey; RAL 7011 |
Environmental Data
0,2488 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 0,2488 kg CO2e / 1 Piece |
|---|
