90° vertical bend, rising FT
Type RBV 150 S FT | Item no. 7007327 | EAN 4012195863625
Item no. / Type
Width
Surface
Hot-dip galvanised
Material
Steel
Colour
zinc
Smallest selling unit: 1 piece
1piece
Description

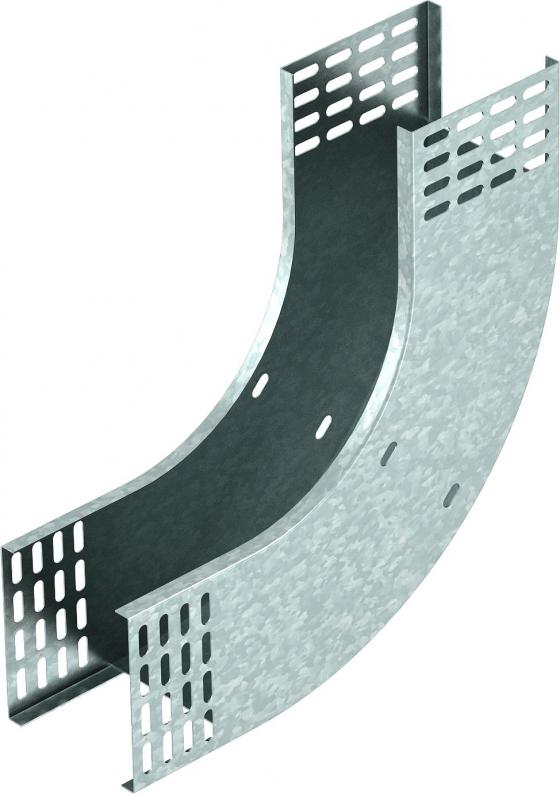

90° rising vertical bend, for all cable tray types of 110 mm side height.
The vertical bend is pushed over the end of the cable tray and screwed tight.
Fastening materials should be ordered separately.
Technical data

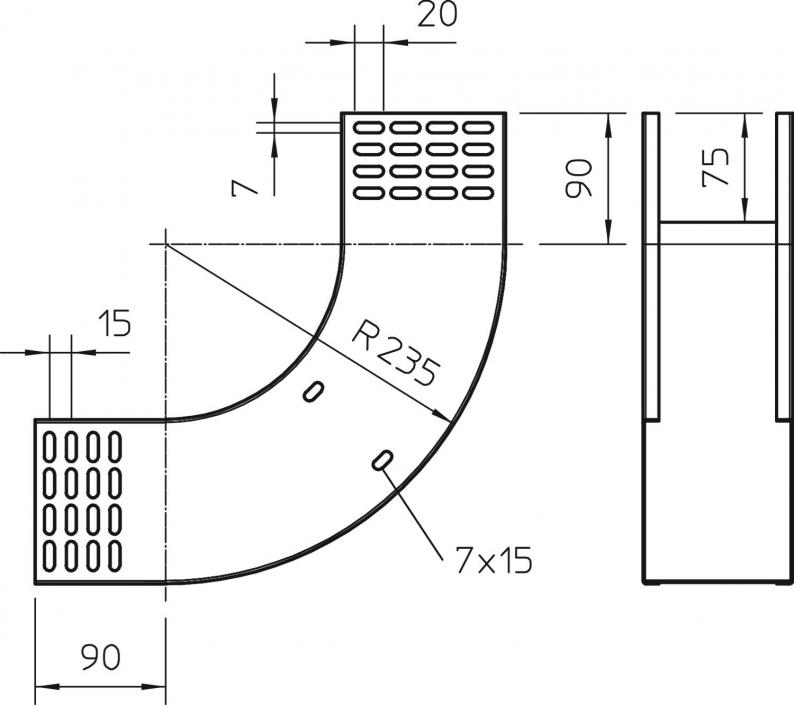

Dimensions
| Width | 500 mm |
|---|---|
| Height | 110 mm |
| Dimension B | 500 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Side perforation | no |
| Connector version | Without connectors |
| Wide-span version | no |
| Rustproof steel, pickled | no |
| Plate thickness | 1 mm |
| Mounting perforation in base | no |
| NATO hole pattern | no |
| Bend (angle) | 90° |
| Change of direction | Vertical rising |
| Dimension | 110x500 |
| Surface | Hot-dip galvanised |
| Material | Steel |
| Colour | zinc |
| Type of connector, cable support system | Screwed |
| CO2 Footprint (GWP) Cradle-to-Gate | 7,4421 kg CO2e / 1 Piece |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (4)
Instructions and Aid (2)
Product images (2)
3D data downloads (1)
Tender specifications (2)
Variants
Type
Width
Surface
Material
Colour
Item no.
RBV 115 S FT
150
Hot-dip galvanised
Steel
zinc
7007313
RBV 130 S FT
300
Hot-dip galvanised
Steel
zinc
7007319
RBV 150 S FT
500
Hot-dip galvanised
Steel
zinc
7007327
RBV 155 S FT
550
Hot-dip galvanised
Steel
zinc
7007331
RBV 160 S FT
600
Hot-dip galvanised
Steel
zinc
7007334
RBV 110 S FT
100
Hot-dip galvanised
Steel
zinc
7007398
RBV 120 S FT
200
Hot-dip galvanised
Steel
zinc
7007400
RBV 140 S FT
400
Hot-dip galvanised
Steel
zinc
7007404
