90° vertical bend, falling 60 A4

90° vertical bend, falling 60 A4

Type RBV 610 F A4 | Item no. 7006750 | EAN 4012195886457

Show all variants
Item no. / Type
Width
Surface
Bright, treated
Material
Stainless steel 1.4571
Colour
stainless steel

Smallest selling unit: 1 piece

DescriptionTechnical dataDownloadsVariants

Description

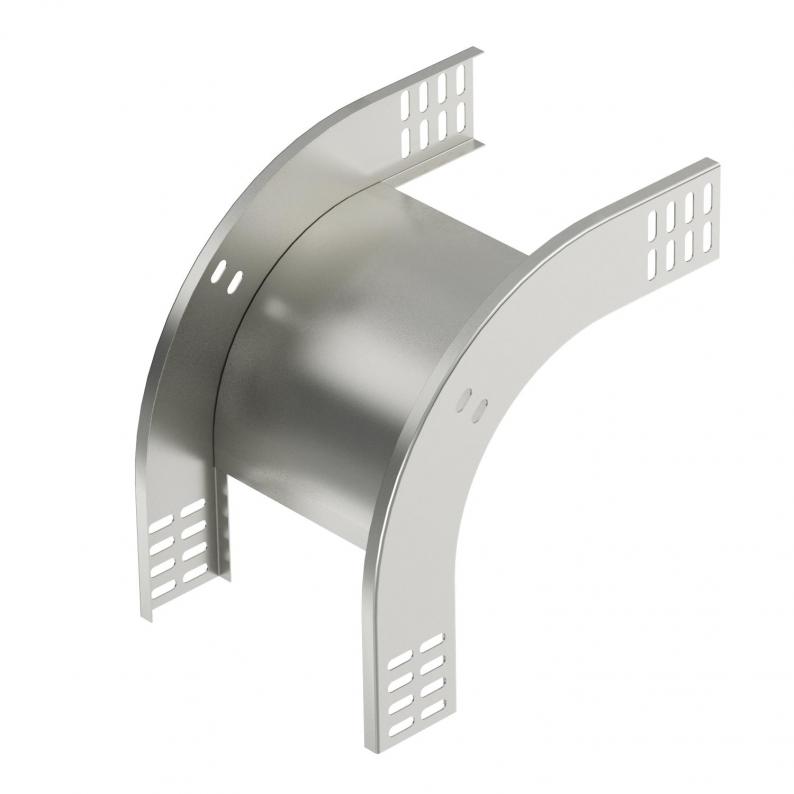

90° vertical bend, falling, for all cable tray types of 60 mm side height.

The vertical bend is pushed over the end of the cable tray and screwed tight.

Fastening materials should be ordered separately.

  • Communautés Européennes, EC declaration of conformity according to EC directives
  • CO₂ footprint (PCF)

Technical data

Dimensions

Width100 mm
Height60 mm
Dimension B100 mm

Technical data

Maintain electrical functionsno
Side perforationno
Connector versionWithout connectors
Wide-span versionno
Rustproof steel, pickledno
Plate thickness1 mm
Mounting perforation in baseno
NATO hole patternno
Bend (angle)90°
Change of directionVertical, falling
Dimension60x100
SurfaceBright, treated
MaterialStainless steel 1.4571
Colourstainless steel
Type of connector, cable support systemScrewed
CO2 Footprint (GWP) Cradle-to-Gate4,8889 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (3)
Declarations (3)
Instructions and Aid (2)
Product images (2)
Tender specifications (2)

Variants

Width
RBV 610 F A4
Item no.
7006750
Width
100
Surface
Bright, treated
Material
Stainless steel 1.4571
Colour
stainless steel
RBV 630 F A4
Item no.
7006758
Width
300
Surface
Bright, treated
Material
Stainless steel 1.4571
Colour
stainless steel
RBV 640 F A4
Item no.
7006762
Width
400
Surface
Bright, treated
Material
Stainless steel 1.4571
Colour
stainless steel
RBV 650 F A4
Item no.
7006766
Width
500
Surface
Bright, treated
Material
Stainless steel 1.4571
Colour
stainless steel
RBV 660 F A4
Item no.
7006770
Width
600
Surface
Bright, treated
Material
Stainless steel 1.4571
Colour
stainless steel
