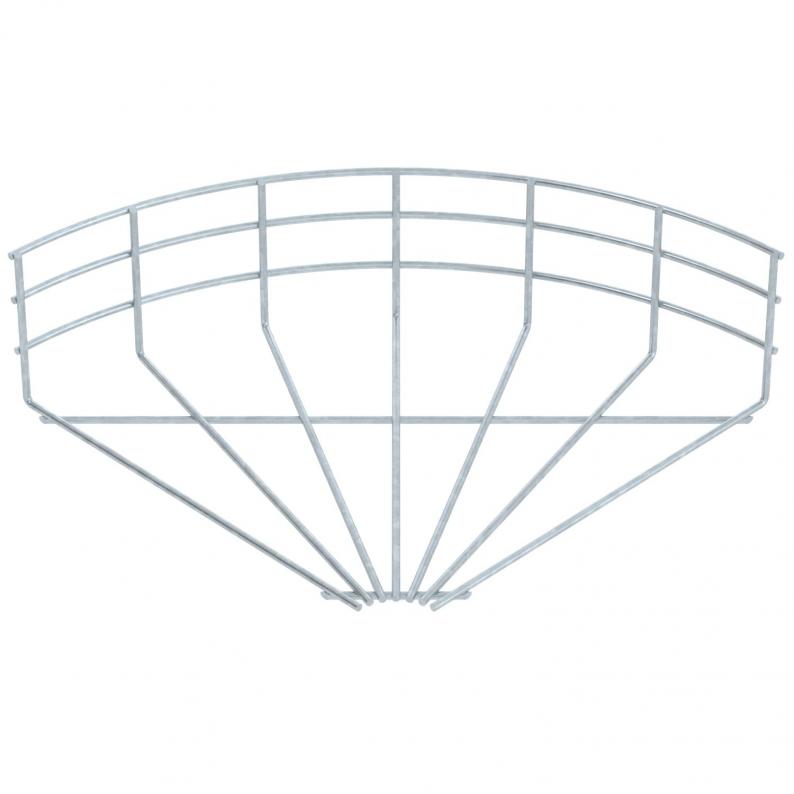

90° mesh cable tray bend FT

90° mesh cable tray bend FT

Type GRB 90 110 FT | Item no. 6002307 | EAN 4012196002054

Show all variants
Item no. / Type
Width
Wire diameter
Maintain electrical functions
no

Smallest selling unit: 1 piece

DescriptionTechnical dataDownloadsAccessoriesVariants

Description

90° bend, horizontal, for all mesh cable trays of 105 mm side height.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Mesh cable tray, slant height 105 mm
  • CO₂ footprint (PCF)

Technical data

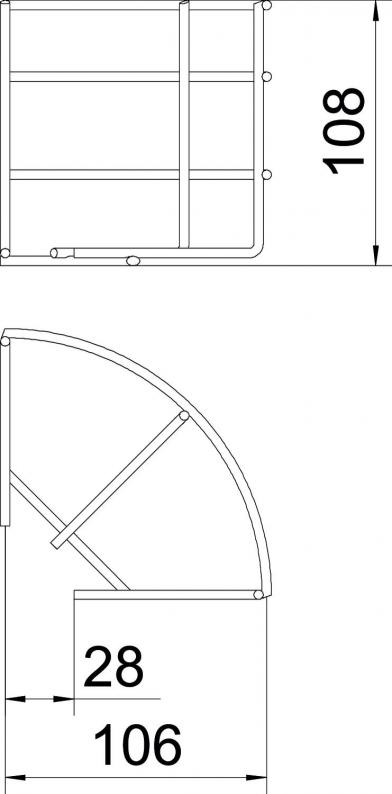

Dimensions

Width100 mm
Height105 mm
Dimension A28 mm
Dimension B106 mm
Dimension H108 mm

Technical data

Maintain electrical functionsno
Connector versionWithout connectors
Rustproof steel, pickledno
Bend (angle)90°
TypeHorizontal bend
Wire diameter3,9 mm
Dimension105x100
SurfaceHot-dip galvanised
MaterialSteel
Colourzinc
CO2 Footprint (GWP) Cradle-to-Gate0,4758 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (2)
Declarations (3)
Instructions and Aid (3)
Product images (2)
3D data downloads (1)
Tender specifications (2)

Accessories

Mounting accessories

Item no. 6016634

Joint connector FT
Type
GSV 34 FT

Smallest selling unit: 20 piece

Variants

Width
Wire diameter
GRB 90 110 FT
Item no.
6002307
Width
100
Maintain electrical functions
no
Wire diameter
3,9
GRB 90 115 FT
Item no.
6002311
Width
150
Maintain electrical functions
no
Wire diameter
3,9
GRB 90 120 FT
Item no.
6002315
Width
200
Maintain electrical functions
no
Wire diameter
4,8
GRB 90 130 FT
Item no.
6002323
Width
300
Maintain electrical functions
no
Wire diameter
4,8
GRB 90 140 FT
Item no.
6002331
Width
400
Maintain electrical functions
no
Wire diameter
4,8
GRB 90 145 FT
Item no.
6002335
Width
450
Maintain electrical functions
no
Wire diameter
4,8
GRB 90 150 FT
Item no.
6002358
Width
500
Maintain electrical functions
no
Wire diameter
4,8
GRB 90 160 FT
Item no.
6002366
Width
600
Maintain electrical functions
no
Wire diameter
4,8
