90° bend 85 FT
Type RB 90 840 FT | Item no. 7126417 | EAN 4012196248056
Item no. / Type
Width
Surface
Hot-dip galvanised
Material
Steel
This item is a discontinued product!
Smallest selling unit: 1 piece
1piece
Description

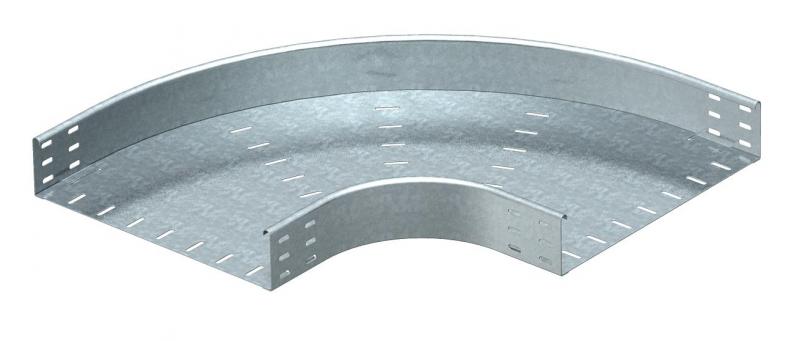

90° bend, horizontal, for all cable tray types of 85 mm side height.
Fastening materials should be ordered separately.
Technical data

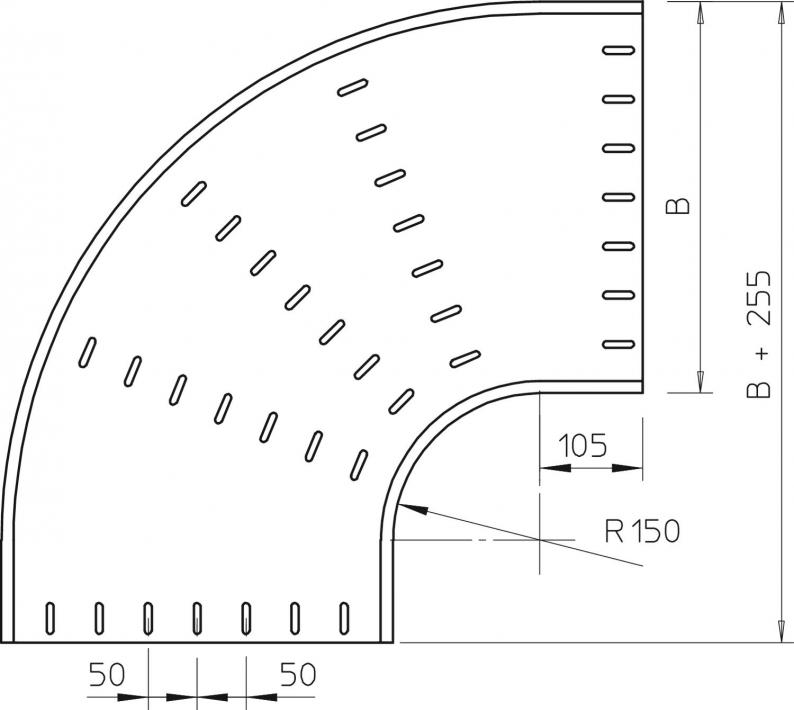

Dimensions
| Width | 400 mm |
|---|---|
| Height | 85 mm |
| Dimension B | 400 mm |
| Dimension R | 150 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Side perforation | no |
| Connector version | Without connectors |
| Wide-span version | no |
| Rustproof steel, pickled | no |
| Mounting perforation in base | no |
| NATO hole pattern | no |
| Bend (angle) | 90° |
| Change of direction | Horizontal |
| Dimension | 85x400 |
| Surface | Hot-dip galvanised |
| Material | Steel |
| Type of connector, cable support system | Screwed |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (3)
Instructions and Aid (2)
Product images (2)
3D data downloads (1)
Tender specifications (2)
Variants
Type
Width
Surface
Material
Item no.
RB 90 840 FT
400
Hot-dip galvanised
Steel
7126417
RB 90 850 FT
500
Hot-dip galvanised
Steel
7126514
Width
RB 90 840 FT
Item no.
7126417
Width
400
Surface
Hot-dip galvanised
Material
Steel
RB 90 850 FT
Item no.
7126514
Width
500
Surface
Hot-dip galvanised
Material
Steel
