90° bend 85 FT
Type RB 90 820 FT | Item no. 7126216 | EAN 4012196814572
Item no. / Type
Width
Surface
Hot-dip galvanised
Material
Steel
Colour
zinc
Smallest selling unit: 1 piece
1piece
Description

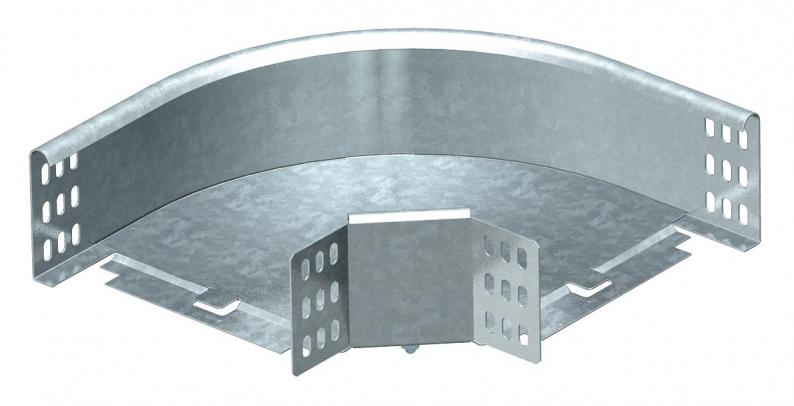

90° bend, horizontal, for all cable tray types of 85 mm side height.
The fitting is shipped in an unmounted state.
Including appropriate fastening material.
Technical data

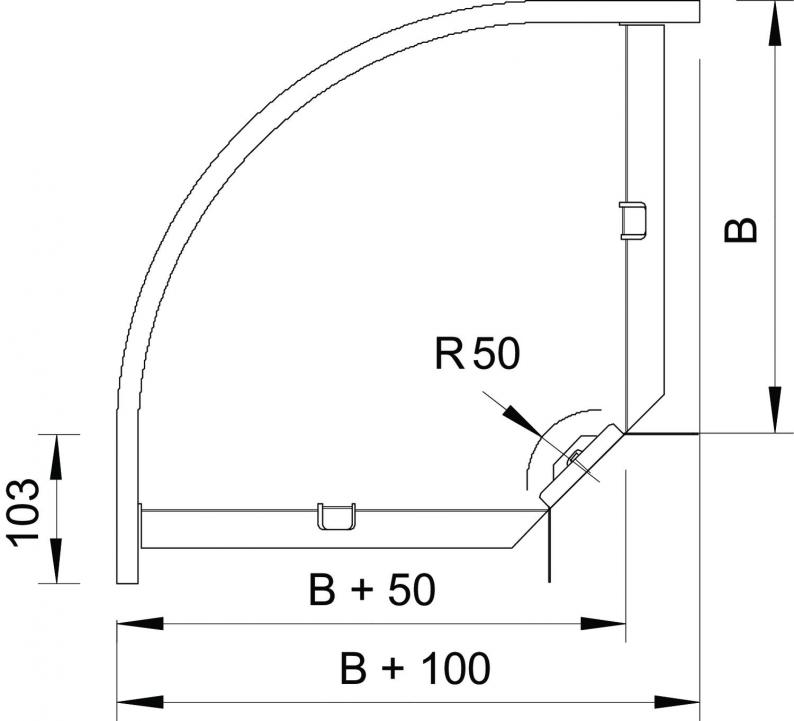

Dimensions
| Width | 200 mm |
|---|---|
| Height | 85 mm |
| Dimension B | 200 mm |
| Dimension R | 50 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Side perforation | no |
| Connector version | Supplied connectors |
| Wide-span version | no |
| Rustproof steel, pickled | no |
| Mounting perforation in base | no |
| NATO hole pattern | no |
| Bend (angle) | 90° |
| Change of direction | Horizontal |
| Dimension | 85x200 |
| Surface | Hot-dip galvanised |
| Material | Steel |
| Colour | zinc |
| Type of connector, cable support system | Screwed |
| CO2 Footprint (GWP) Cradle-to-Gate | 3,9906 kg CO2e / 1 Piece |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (3)
Instructions and Aid (2)
Product images (2)
3D data downloads (1)
Tender specifications (2)
Variants
Type
Width
Surface
Material
Colour
Item no.
RB 90 810 FT
100
Hot-dip galvanised
Steel
7126127
RB 90 820 FT
200
Hot-dip galvanised
Steel
zinc
7126216
RB 90 830 FT
300
Hot-dip galvanised
Steel
zinc
7126301
Width
RB 90 810 FT
Item no.
7126127
Width
100
Surface
Hot-dip galvanised
Material
Steel
RB 90 820 FT
Item no.
7126216
Width
200
Surface
Hot-dip galvanised
Material
Steel
Colour
zinc
RB 90 830 FT
Item no.
7126301
Width
300
Surface
Hot-dip galvanised
Material
Steel
Colour
zinc
