90° bend 60 FT

90° bend 60 FT

Type RB 90 640 FT | Item no. 7125410 | EAN 4012196247691

Show all variants
Item no. / Type
Width
Surface
Hot-dip galvanised
Material
Steel

This item is a discontinued product!

You can find the successor product here.

Smallest selling unit: 1 piece

DescriptionTechnical dataDownloadsVariants

Description

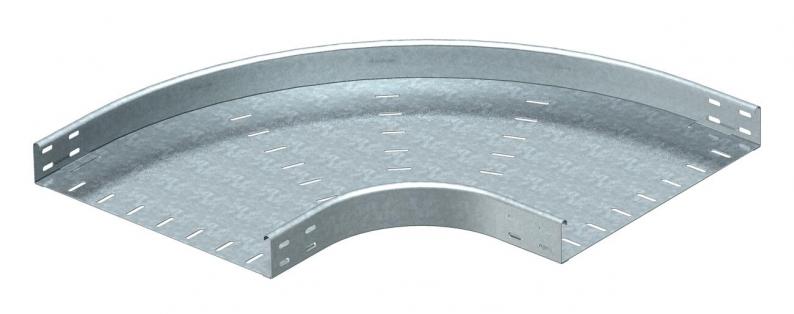

90° bend, horizontal, for all cable tray types of 60 mm side height.

Fitting in round design. The interior radius of the fitting is 150 mm. Fastening materials should be ordered separately.

  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Cable tray, side height 60 mm

Technical data

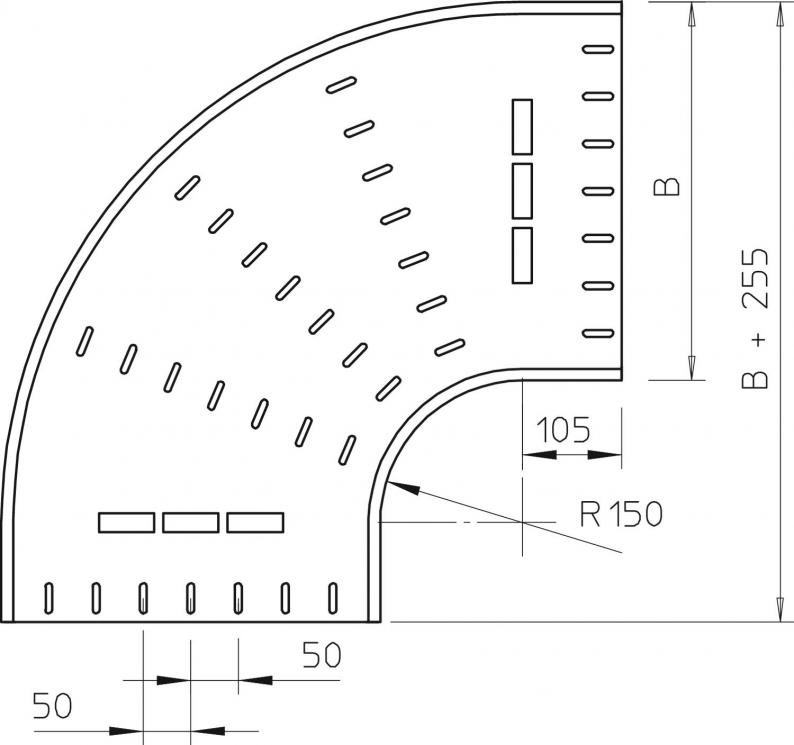

Dimensions

Width400 mm
Height60 mm
Dimension B400 mm
Dimension R150 mm

Technical data

Maintain electrical functionsno
Side perforationno
Connector versionWithout connectors
Wide-span versionno
Rustproof steel, pickledno
Mounting perforation in baseno
NATO hole patternno
Bend (angle)90°
Change of directionHorizontal
TypeBend, rigid
Dimension60x400
SurfaceHot-dip galvanised
MaterialSteel
Type of connector, cable support systemScrewed

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (2)
Declarations (3)
Instructions and Aid (2)
Product images (2)
3D data downloads (1)
Tender specifications (2)

Variants

Width
RB 90 640 FT
Item no.
7125410
Width
400
Surface
Hot-dip galvanised
Material
Steel
RB 90 645 FT
Item no.
7125461
Width
450
Surface
Hot-dip galvanised
Material
Steel
Colour
zinc
RB 90 650 FT
Item no.
7125526
Width
500
Surface
Hot-dip galvanised
Material
Steel
RB 90 660 FT
Item no.
7125585
Width
600
Surface
Hot-dip galvanised
Material
Steel
RB 90 675 FT
Item no.
7125586
Width
750
Surface
Hot-dip galvanised
Material
Steel
Colour
zinc
RB 90 690 FT
Item no.
7125588
Width
900
Surface
Hot-dip galvanised
Material
Steel
Colour
zinc
