90° bend 60 FT
Type RB 90 610 FT | Item no. 7125100 | EAN 4012196814091
Item no. / Type
Width
Surface
Hot-dip galvanised
Material
Steel
This item is a discontinued product!
You can find the successor product here.
Smallest selling unit: 1 piece
1piece
Description

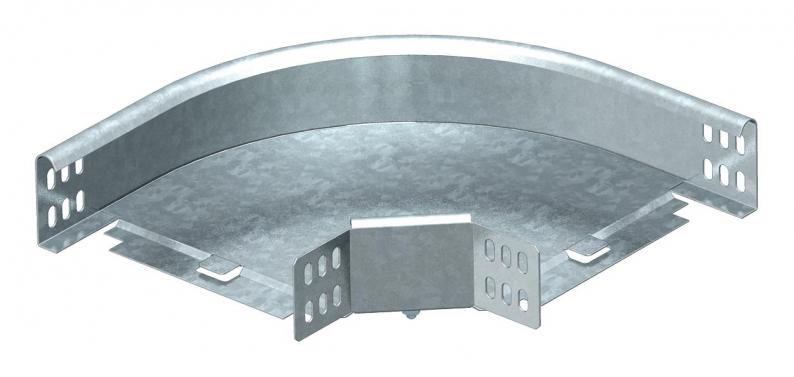

90° bend, horizontal, for all cable tray types of 60 mm side height.
The fitting is shipped in an unmounted state.
Including appropriate fastening material.
The 50 mm width has a rectangle shape and does not correspond to the image.
Technical data

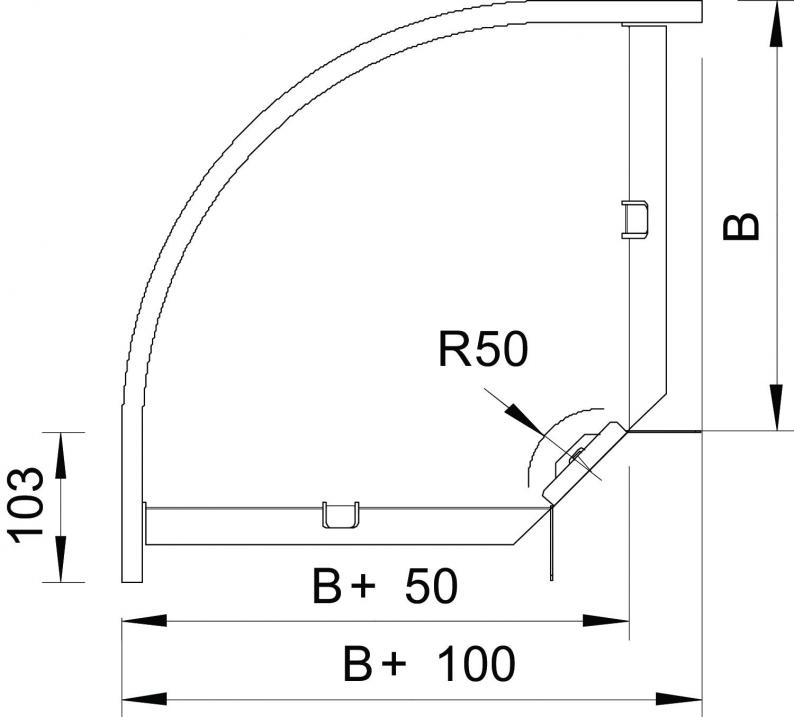

Dimensions
| Width | 100 mm |
|---|---|
| Height | 60 mm |
| Dimension B | 100 mm |
| Dimension R | 50 mm |
Technical data
| Maintain electrical functions | yes |
|---|---|
| Side perforation | no |
| Connector version | Supplied connectors |
| Wide-span version | no |
| Rustproof steel, pickled | no |
| Mounting perforation in base | no |
| NATO hole pattern | no |
| Bend (angle) | 90° |
| Change of direction | Horizontal |
| Type | Bend, rigid |
| Dimension | 60x100 |
| Surface | Hot-dip galvanised |
| Material | Steel |
| Type of connector, cable support system | Screwed |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (4)
Instructions and Aid (2)
Product images (2)
3D data downloads (1)
Tender specifications (2)
Variants
Type
Width
Surface
Material
Item no.
RB 90 610 FT
100
Hot-dip galvanised
Steel
7125100
RB 90 615 FT
150
Hot-dip galvanised
Steel
7125189
RB 90 620 FT
200
Hot-dip galvanised
Steel
7125220
RB 90 630 FT
300
Hot-dip galvanised
Steel
7125305
Width
RB 90 610 FT
Item no.
7125100
Width
100
Surface
Hot-dip galvanised
Material
Steel
RB 90 615 FT
Item no.
7125189
Width
150
Surface
Hot-dip galvanised
Material
Steel
RB 90 620 FT
Item no.
7125220
Width
200
Surface
Hot-dip galvanised
Material
Steel
RB 90 630 FT
Item no.
7125305
Width
300
Surface
Hot-dip galvanised
Material
Steel
