90° bend 60 A4
Type RBU 90 640 A4 | Item no. 7134292 | EAN 4012195866572
Item no. / Type
7134292 / RBU 90 640 A4
Surface
Bright, treated
Material
Stainless steel 1.4571
This item is a discontinued product!
You can find the successor product here.
Smallest selling unit: 1 piece
1piece
Description
90° bend, horizontal and unperforated, for all cable tray types of 60 mm side height.
Fitting, unperforated, in round design. The interior radius of the fitting is 150 mm. Fastening materials should be ordered separately.
Technical data

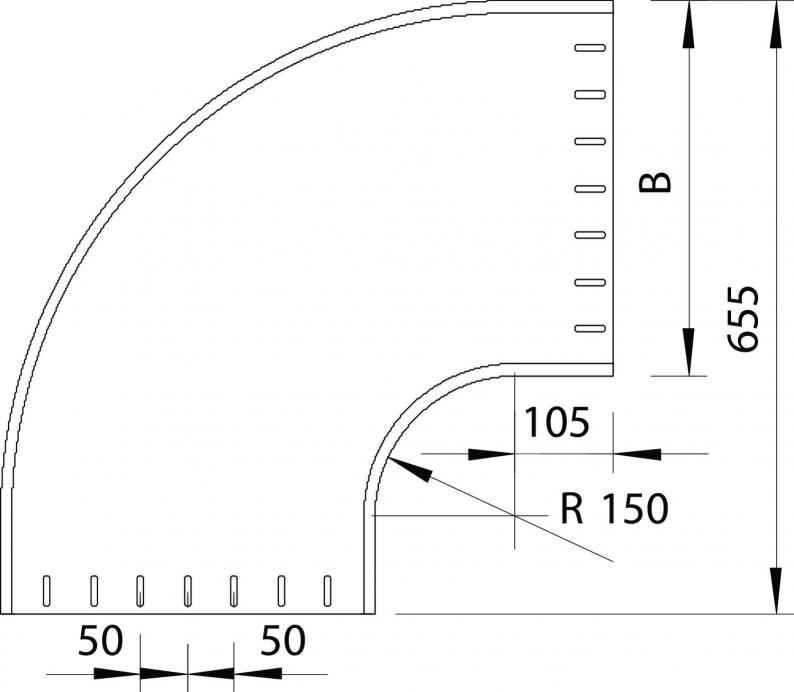

Dimensions
| Width | 400 mm |
|---|---|
| Height | 60 mm |
| Dimension B | 400 mm |
| Dimension R | 150 mm |
Technical data
| Connector version | Without connectors |
|---|---|
| Plate thickness | 1,5 mm |
| Bend (angle) | 90° |
| Change of direction | Horizontal |
| Dimension | 60x400 |
| Surface | Bright, treated |
| Material | Stainless steel 1.4571 |
| Type of connector, cable support system | Screwed |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (3)
Instructions and Aid (2)
Product images (2)
Tender specifications (2)
Variants
Type
Width
Surface
Material
Item no.
RBU 90 640 A4
400
Bright, treated
Stainless steel 1.4571
7134292
RBU 90 640 A4
Item no.
7134292
Width
400
Surface
Bright, treated
Material
Stainless steel 1.4571
