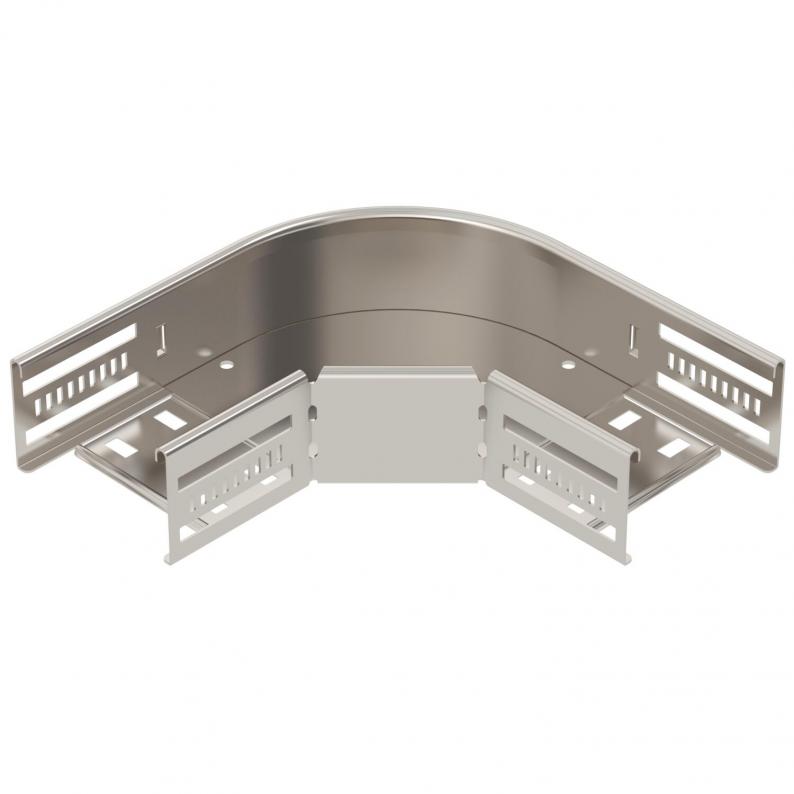

90° bend 60 A4

90° bend 60 A4

Type RB 90 610 A4 | Item no. 6036650 | EAN 4012197343774

Show all variants
Item no. / Type
Width
Surface
Bright, treated
Material
Stainless steel 1.4571
Colour
stainless steel

Smallest selling unit: 1 piece

DescriptionTechnical dataDownloadsAccessoriesVariants

Description

90° bend for the creation of a horizontal branch, fitting for lock and screw-on cable trays of side height 60 mm. Screwless mounting with double clamps or screw connection with FRS truss-head screws and M6 combination nuts. Can be used indoors and outdoors. Fastening material must be ordered separately.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)

Technical data

Dimensions

Width100 mm
Height60 mm
Dimension B100 mm

Technical data

Maintain electrical functionsyes
Side perforationyes
Connector versionIntegrated connector
Wide-span versionno
Rustproof steel, pickledno
Plate thickness0,8 mm
Mounting perforation in baseyes
NATO hole patternno
Material thickness, floor plate0,8 mm
Bend (angle)90°
Change of directionHorizontal
With coverno
TypeBend, rigid
Rail thickness1,25 mm
Permitted temperature range, max.120 °C
Permitted temperature range, min.-20 °C
Dimension60x100
SurfaceBright, treated
MaterialStainless steel 1.4571
Colourstainless steel
Type of connector, cable support systemScrewed
Recommended quantity of bolts10 St.
CO2 Footprint (GWP) Cradle-to-Gate4,7397 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (4)
Declarations (4)
Instructions and Aid (3)
Product images (2)
3D data downloads (1)
Tender specifications (2)

Accessories

System accessories

Item no. 6036986

Cover, 90° bend A4
Type
RBD 90 100 A4

Smallest selling unit: 1 piece

Variants

Width
RB 90 610 A4
Item no.
6036650
Width
100
Surface
Bright, treated
Material
Stainless steel 1.4571
Colour
stainless steel
RB 90 620 A4
Item no.
6036654
Width
200
Surface
Bright, treated
Material
Stainless steel 1.4571
Colour
stainless steel
RB 90 630 A4
Item no.
6036656
Width
300
Surface
Bright, treated
Material
Stainless steel 1.4571
Colour
stainless steel
RB 90 640 A4
Item no.
6036658
Width
400
Surface
Bright, treated
Material
Stainless steel 1.4571
Colour
stainless steel
RB 90 660 A4
Item no.
6036662
Width
600
Surface
Bright, treated
Material
Stainless steel 1.4571
Colour
stainless steel
RB 90 650 A4
Item no.
6036660
Width
500
Surface
Bright, treated
Material
Stainless steel 1.4571
Colour
stainless steel
