90° bend 60 A2
Type RB 90 610 A2 | Item no. 7134122 | EAN 4012196820870
Item no. / Type
Width
Surface
Bright, treated
Material
Stainless steel 1.4301
This item is a discontinued product!
You can find the successor product here.
Smallest selling unit: 1 piece
1piece
Description

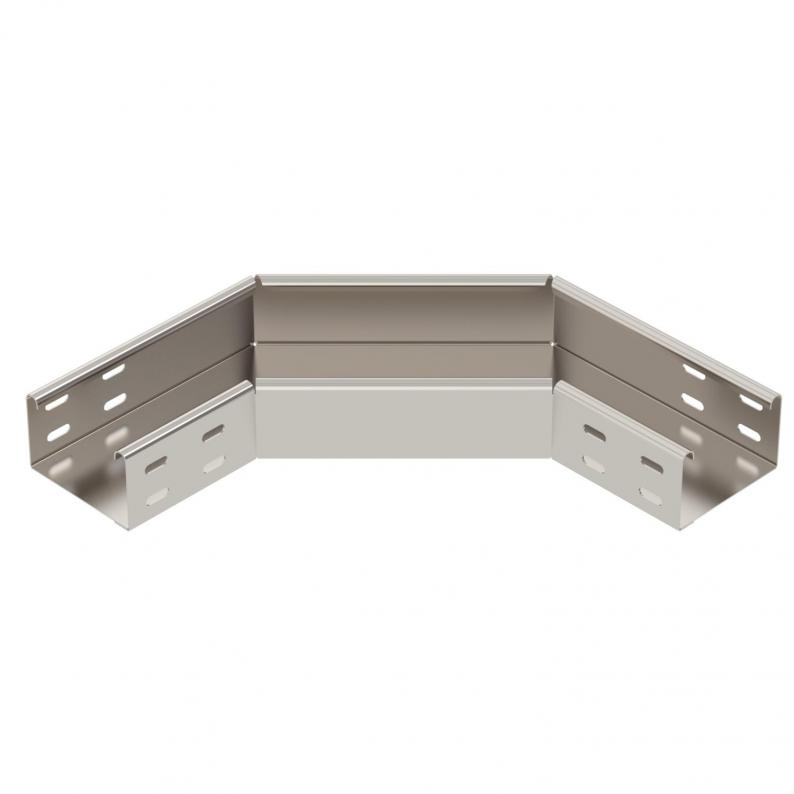

90° bend, horizontal, for all cable tray types of 60 mm side height.
The 100 mm width has a rectangular shape and does not correspond to the image.
The 100 mm width has a rectangular shape and does not correspond to the image.
The fitting is shipped in an unmounted state.
Including appropriate fastening material.
Technical data

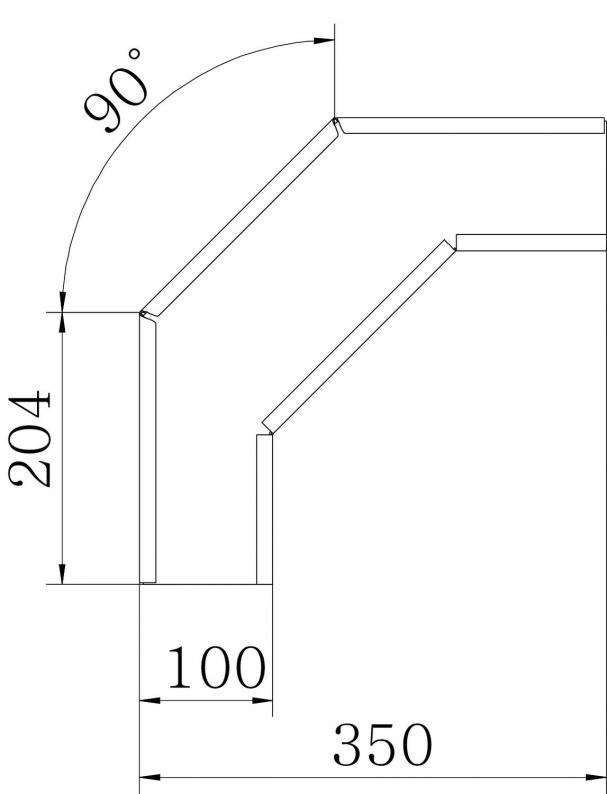

Dimensions
| Width | 100 mm |
|---|---|
| Height | 60 mm |
| Dimension B | 100 mm |
| Dimension R | 50 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Side perforation | no |
| Connector version | Supplied connectors |
| Wide-span version | no |
| Rustproof steel, pickled | no |
| Plate thickness | 1 mm |
| Mounting perforation in base | no |
| NATO hole pattern | no |
| Bend (angle) | 90° |
| Change of direction | Horizontal |
| Dimension | 60x100 |
| Surface | Bright, treated |
| Material | Stainless steel 1.4301 |
| Type of connector, cable support system | Screwed |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (3)
Instructions and Aid (2)
Product images (2)
3D data downloads (1)
Tender specifications (2)
Variants
Type
Width
Surface
Material
Item no.
RB 90 610 A2
100
Bright, treated
Stainless steel 1.4301
7134122
RB 90 630 A2
300
Bright, treated
Stainless steel 1.4301
7134138
Width
RB 90 610 A2
Item no.
7134122
Width
100
Surface
Bright, treated
Material
Stainless steel 1.4301
RB 90 630 A2
Item no.
7134138
Width
300
Surface
Bright, treated
Material
Stainless steel 1.4301
