90° bend 200 FT

90° bend 200 FT

Type WLB 90 2020 FT | Item no. 6233422 | EAN 4012196176298

Show all variants
Item no. / Type
Width
Rail thickness

Smallest selling unit: 1 piece

DescriptionTechnical dataDownloadsVariants

Description

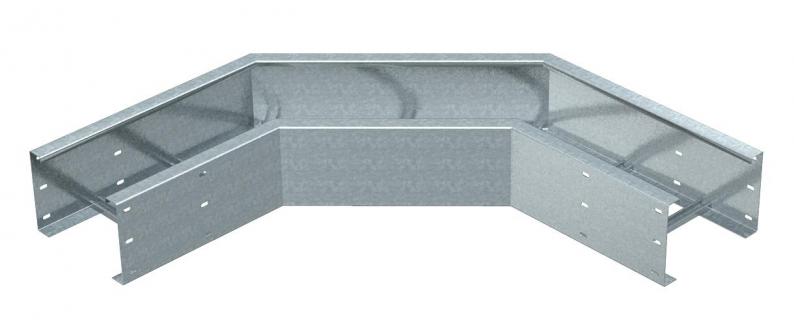

90° bend, horizontal, for all wide span cable ladders of 200 mm side height.

For further stabilisation, additional supports should be planned for the area of the fittings.

  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Wide span cable ladder, side height 200 mm
  • CO₂ footprint (PCF)

Technical data

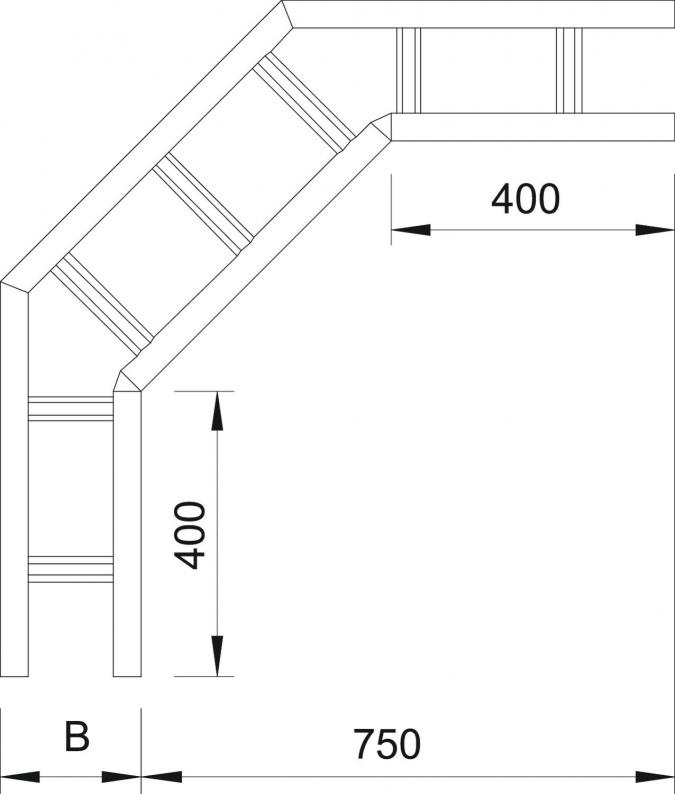

Dimensions

Width200 mm
Height200 mm
Dimension B200 mm
Dimension R200 mm

Technical data

Maintain electrical functionsno
Side perforationno
Wide-span versionyes
Rustproof steel, pickledno
Bend (angle)90°
Version of the rungsProfile unperforated
Side rail versionFlat profile
Change of directionHorizontal
Rail thickness2,5 mm
Dimension200x200
SurfaceHot-dip galvanised
MaterialSteel
Colourzinc
CO2 Footprint (GWP) Cradle-to-Gate48,0562 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Declarations (4)
Instructions and Aid (2)
Product images (2)
3D data downloads (1)
Tender specifications (2)

Variants

Width
WLB 90 2020 FT
Item no.
6233422
Width
200
Rail thickness
2,5
WLB 90 2030 FT
Item no.
6233430
Width
300
Rail thickness
2,5
WLB 90 2040 FT
Item no.
6233449
Width
400
Rail thickness
2,5
WLB 90 2050 FT
Item no.
6233457
Width
500
Rail thickness
2,5
WLB 90 2060 FT
Item no.
6233465
Width
600
Rail thickness
2,5
