90° bend 110 FT

Type RB 90 120 FT | Item no. 7127227 | EAN 4012196814756

Item no. / Type

7127227 / RB 90 120 FT

Surface

Hot-dip galvanised

Material

Steel

Colour

zinc

This item is a discontinued product!

You can find the successor product here.

Smallest selling unit: 1 piece

Description

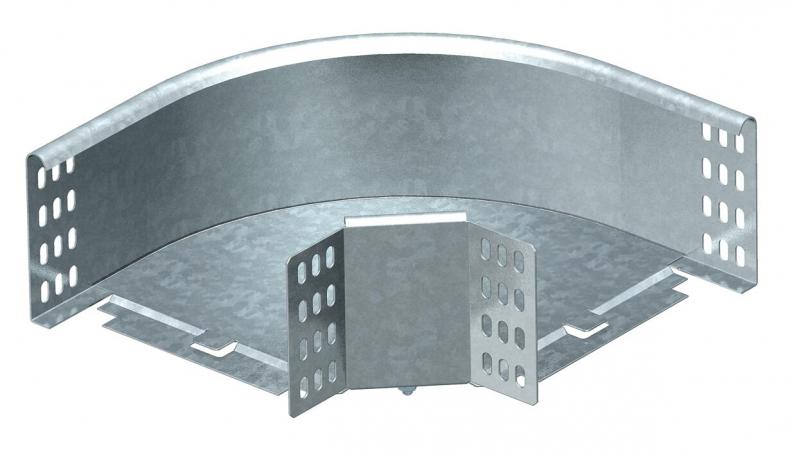

90° bend, horizontal, for all cable tray types of 110 mm side height.

The fitting is shipped in an unmounted state.

Including appropriate fastening material.

Maintain electrical functions	no
Side perforation	no
Connector version	Supplied connectors
Wide-span version	no
Rustproof steel, pickled	no
Mounting perforation in base	no
NATO hole pattern	no
Bend (angle)	90°
Change of direction	Horizontal
With cover	no

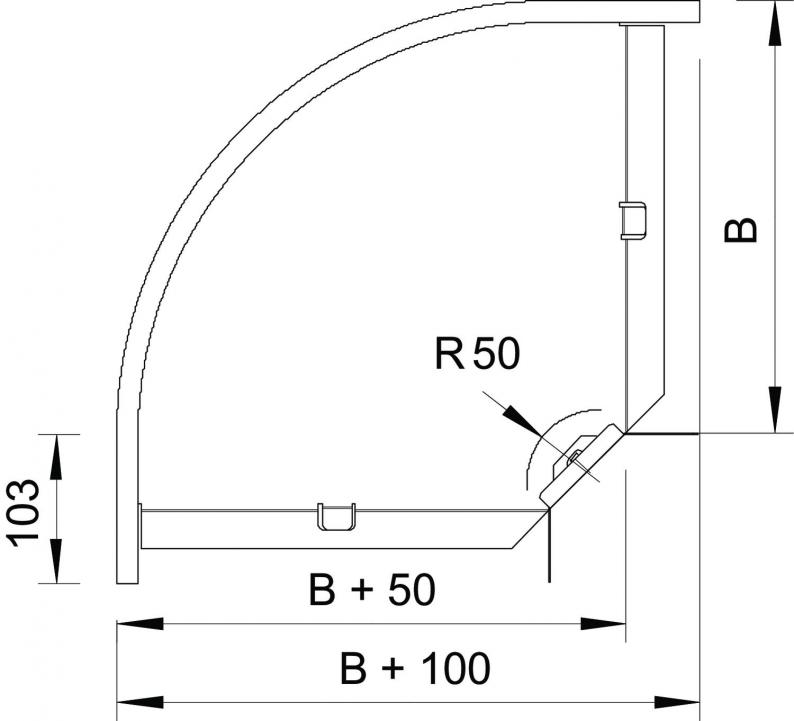

Dimension	110x200
Surface	Hot-dip galvanised
Material	Steel
Colour	zinc
Type of connector, cable support system	Screwed
