90° adjustable bend, vertical 85 FT

90° adjustable bend, vertical 85 FT

Type RGBV 810 FT
|
Item no. 7080107
|
EAN 4012196229758
Show all variants
Item no. / Type
Width
Surface
Hot-dip galvanised
Material
Steel
Colour
zinc

This item is a discontinued product!

You can find the successor product here.

Smallest selling unit: 1 piece

piece

DescriptionTechnical dataDownloadsVariants

Description

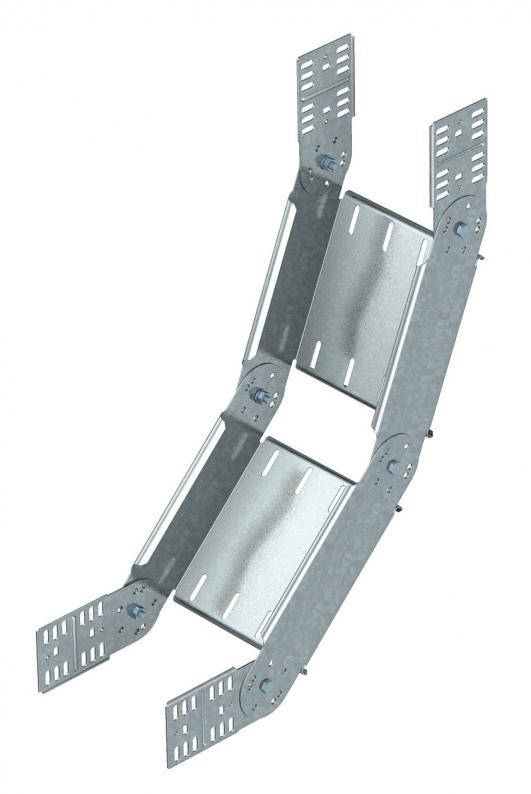

90° adjustable vertical bend, for all cable tray types with a side height of 85 mm.

The bend is shipped in an unmounted state. No additional fastening materials are required.

  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Cable tray, side height 85 mm

Technical data

Dimensions

Width100 mm
Height85 mm

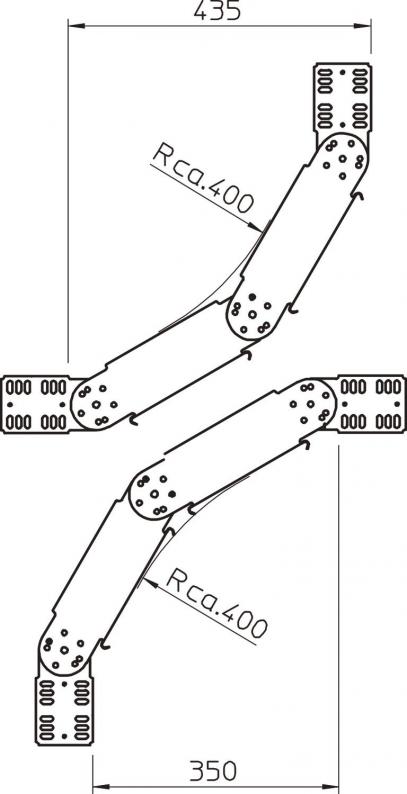

Dimension R400 mm

Technical data

Maintain electrical functionsno
Side perforationno
Connector versionSupplied connectors
Wide-span versionno
Rustproof steel, pickledno
Plate thickness1 mm
Mounting perforation in baseno
NATO hole patternno
Bend (angle)90°
Change of directionVertical, rising/falling
TypeAdjustable bend_complete
Dimension85x100
SurfaceHot-dip galvanised
MaterialSteel
Colourzinc
Type of connector, cable support systemScrewed

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (2)
Declarations (3)
Instructions and Aid (1)
Product images (2)
Tender specifications (2)

Variants

Width
RGBV 810 FT
Item no.
7080107
Width
100
Surface
Hot-dip galvanised
Material
Steel
Colour
zinc
RGBV 820 FT
Item no.
7080204
Width
200
Surface
Hot-dip galvanised
Material
Steel
Colour
zinc
RGBV 830 FT
Item no.
7080301
Width
300
Surface
Hot-dip galvanised
Material
Steel
Colour
zinc
RGBV 840 FT
Item no.
7080409
Width
400
Surface
Hot-dip galvanised
Material
Steel
Colour
zinc
RGBV 850 FT
Item no.
7080506
Width
500
Surface
Hot-dip galvanised
Material
Steel
Colour
zinc
RGBV 860 FT
Item no.
7080603
Width
600
Surface
Hot-dip galvanised
Material
Steel
Colour
zinc
