90° adjustable bend, vertical 60 A2
Type RGBV 610 A2 | Item no. 7138113 | EAN 4012196258499
Item no. / Type
7138113 / RGBV 610 A2
Surface
Bright, treated
Material
Stainless steel 1.4301
Colour
stainless steel
This item is a discontinued product!
Smallest selling unit: 1 piece
1piece
Description

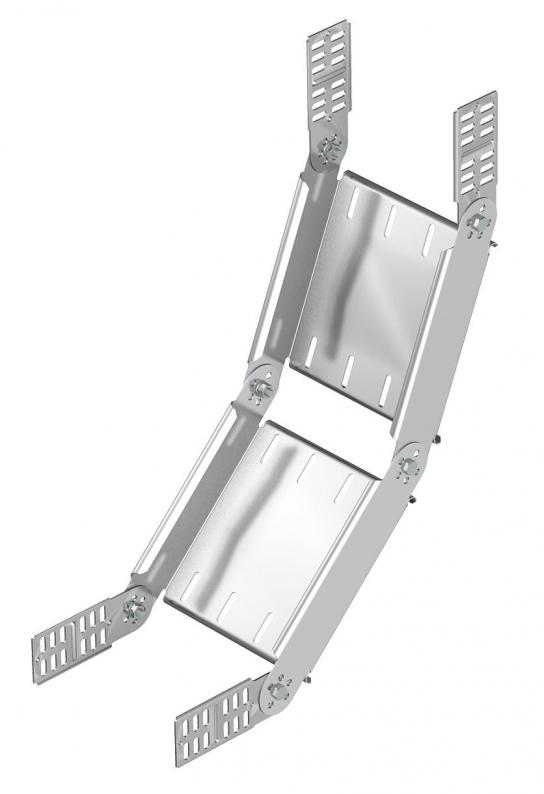

90° adjustable vertical bend, for all cable tray types with a side height of 60 mm.
The bend is shipped in an unmounted state. No additional fastening materials are required.
Technical data
Dimensions
| Width | 100 mm |
|---|---|
| Height | 60 mm |

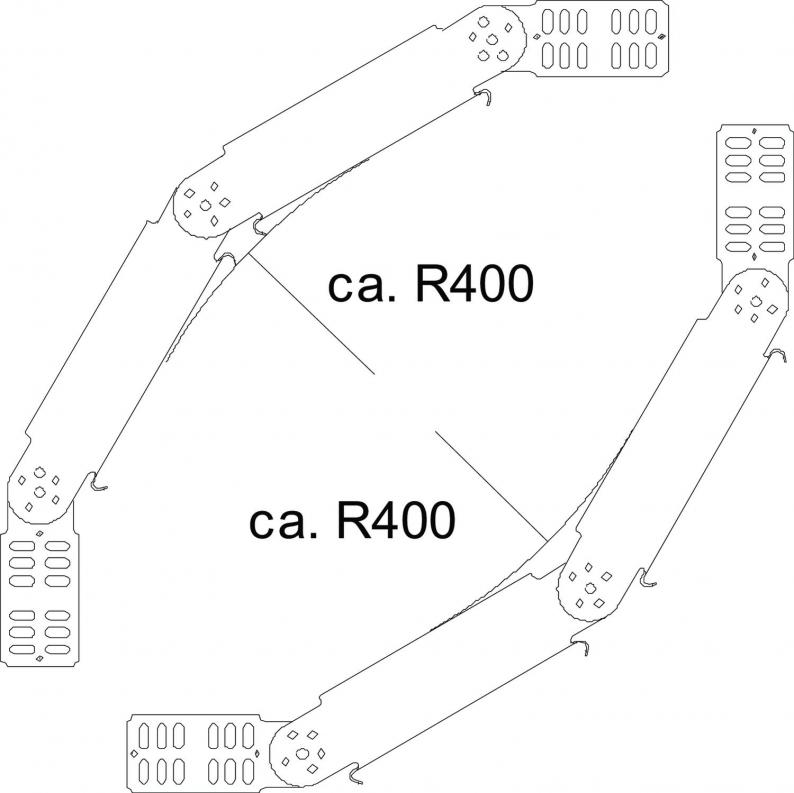

| Dimension R | 400 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Side perforation | no |
| Connector version | Supplied connectors |
| Wide-span version | no |
| Rustproof steel, pickled | no |
| Plate thickness | 1 mm |
| Mounting perforation in base | no |
| NATO hole pattern | no |
| Bend (angle) | 90° |
| Change of direction | Vertical, rising/falling |
| Type | Adjustable bend_complete |
| Dimension | 60x100 |
| Surface | Bright, treated |
| Material | Stainless steel 1.4301 |
| Colour | stainless steel |
| Type of connector, cable support system | Screwed |
