90° adjustable bend, vertical 110 FT
Type RGBV 115 FT | Item no. 7081108 | EAN 4012195995876
Item no. / Type
Width
Surface
Hot-dip galvanised
Material
Steel
Colour
zinc
This item is a discontinued product!
You can find the successor product here.
Smallest selling unit: 1 piece
1piece
Description

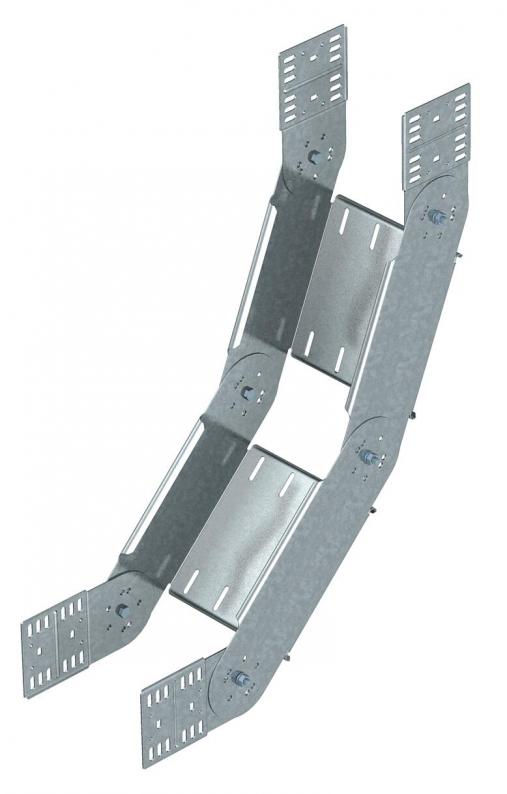

90° adjustable vertical bend, for all cable tray types with a side height of 110 mm.
The bend is shipped in an unmounted state. No additional fastening materials are required.
Technical data

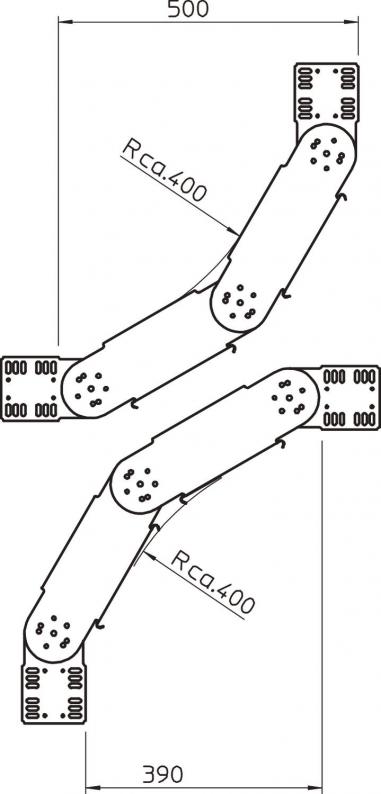

Dimensions
| Width | 150 mm |
|---|---|
| Height | 110 mm |
| Dimension R | 400 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Side perforation | no |
| Connector version | Supplied connectors |
| Wide-span version | no |
| Rustproof steel, pickled | no |
| Plate thickness | 1 mm |
| Mounting perforation in base | no |
| NATO hole pattern | no |
| Bend (angle) | 90° |
| Change of direction | Vertical, rising/falling |
| Type | Adjustable bend_complete |
| Dimension | 110x150 |
| Surface | Hot-dip galvanised |
| Material | Steel |
| Colour | zinc |
| Type of connector, cable support system | Screwed |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (3)
Instructions and Aid (1)
Product images (2)
Tender specifications (2)
Variants
Type
Width
Surface
Material
Colour
Item no.
RGBV 110 FT
100
Hot-dip galvanised
Steel
zinc
7081103
RGBV 115 FT
150
Hot-dip galvanised
Steel
zinc
7081108
RGBV 120 FT
200
Hot-dip galvanised
Steel
zinc
7081200
RGBV 130 FT
300
Hot-dip galvanised
Steel
zinc
7081308
RGBV 140 FT
400
Hot-dip galvanised
Steel
zinc
7081405
RGBV 150 FT
500
Hot-dip galvanised
Steel
zinc
7081502
RGBV 155 FT
550
Hot-dip galvanised
Steel
zinc
7081553
RGBV 160 FT
600
Hot-dip galvanised
Steel
zinc
7081555
