45° bend 110 FT
Type RB 45 140 FT | Item no. 7068409 | EAN 4012196225552
Item no. / Type
Width
Surface
Hot-dip galvanised
Material
Steel
This item is a discontinued product!
You can find the successor product here.
Smallest selling unit: 1 piece
1piece
Description

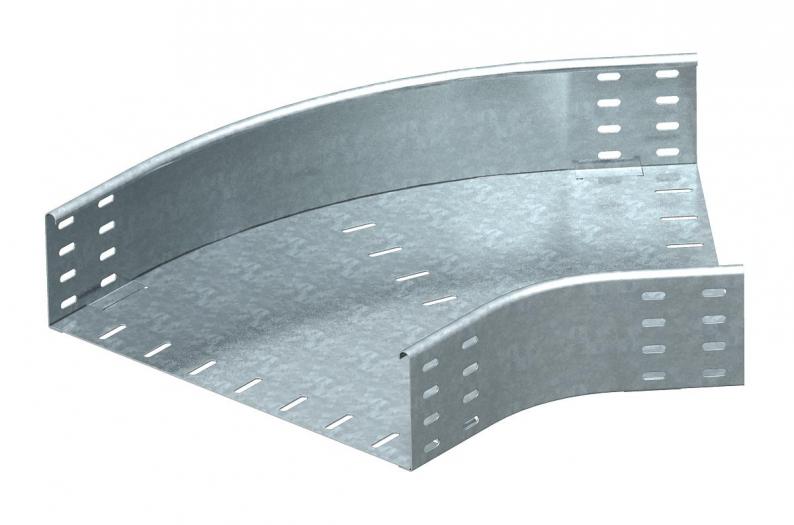

45° bend, horizontal, for all cable tray types of 110 mm side height.
Fastening materials should be ordered separately.
Technical data

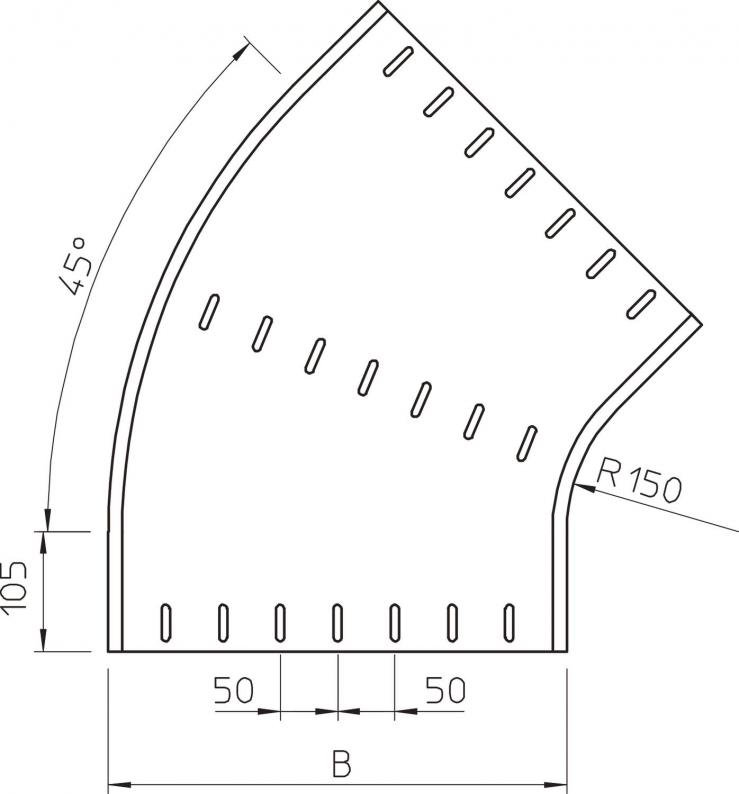

Dimensions
| Width | 400 mm |
|---|---|
| Height | 110 mm |
| Dimension B | 400 mm |
| Dimension R | 150 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Side perforation | no |
| Connector version | Without connectors |
| Wide-span version | no |
| Rustproof steel, pickled | no |
| Mounting perforation in base | no |
| NATO hole pattern | no |
| Bend (angle) | 45° |
| Change of direction | Horizontal |
| Dimension | 110x400 |
| Surface | Hot-dip galvanised |
| Material | Steel |
| Type of connector, cable support system | Screwed |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (3)
Instructions and Aid (2)
Product images (2)
Tender specifications (2)
Variants
Type
Width
Surface
Material
Item no.
RB 45 140 FT
400
Hot-dip galvanised
Steel
7068409
RB 45 155 FT
550
Hot-dip galvanised
Steel
7068557
Width
RB 45 140 FT
Item no.
7068409
Width
400
Surface
Hot-dip galvanised
Material
Steel
RB 45 155 FT
Item no.
7068557
Width
550
Surface
Hot-dip galvanised
Material
Steel
