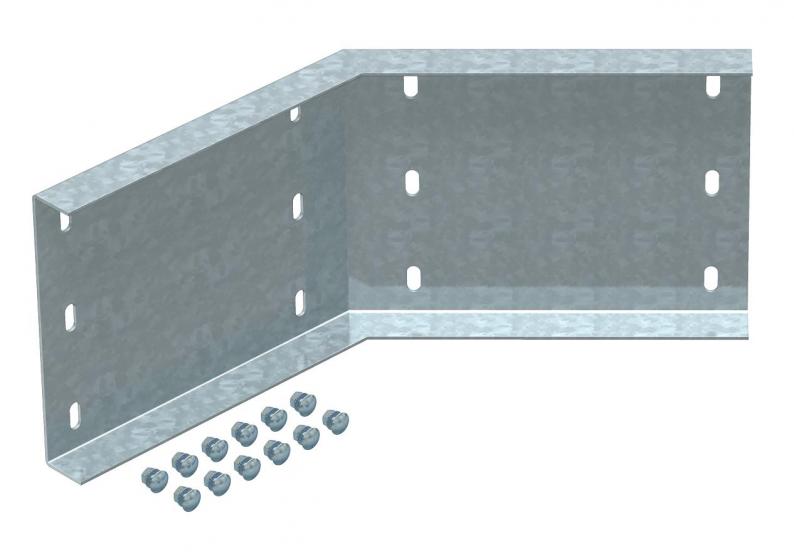

45° angle connector, horizontal, external strut 200 FT
Type WRWV 200 A FT | Item no. 6232604 | EAN 4012196175758
Item no. / Type
6232604 / WRWV 200 A FT
Smallest selling unit: 4 piece
4piece
Description
45° angle connector, horizontal, for wide span cable ladders of 200 mm side height.
Including appropriate bolts, washers and nuts.
Technical data

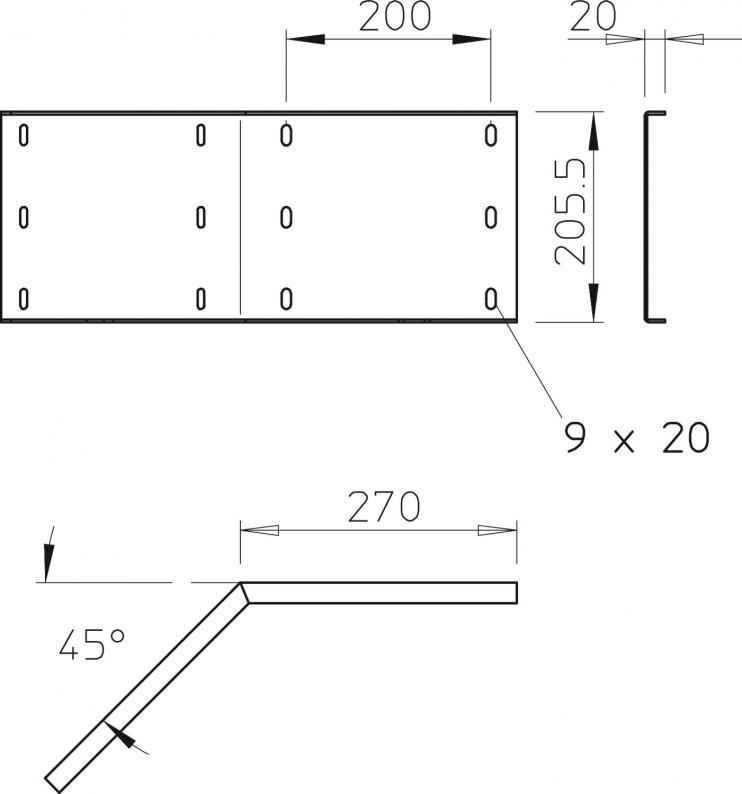

Dimensions
| Length | 540 mm |
|---|---|
| Width | 20 mm |
| Height | 200 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Rustproof steel, pickled | no |
| Plate thickness | 2,5 mm |
| Suitable for mesh cable tray | no |
| Suitable for cable ladder | yes |
| Suitable for cable tray | yes |
| Adjustable connector, horizontal | no |
| Articulated connector, vertical | no |
| Suitable for cable tray system height | 200 mm |
| Version for | Angle connector |
| Connection type | Screw connector |
| Dimension | 200x500 |
| Surface | Hot-dip galvanised |
| Material | Steel |
| Colour | zinc |
| CO2 Footprint (GWP) Cradle-to-Gate | 8,7343 kg CO2e / 1 Piece |
