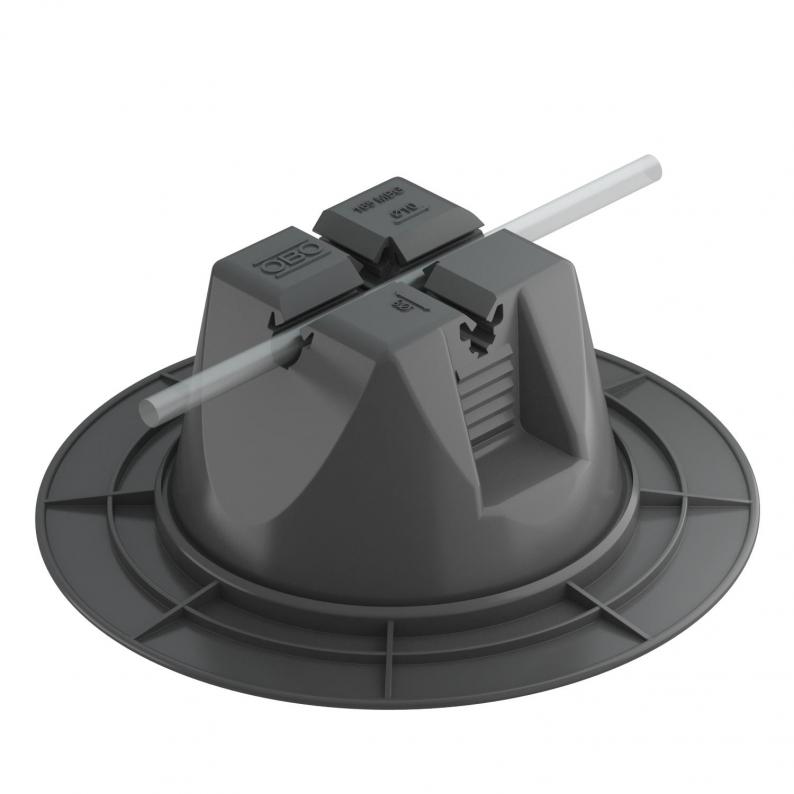

165 MBG... roof cable holder for flat roofs, with increased base section

165 MBG... roof cable holder for flat roofs, with increased base section

Type 165 MBG-8-10 200
|
Item no. 5218716
|
EAN 4012196648320
Show all variants
Item no. / Type
5218716 / 165 MBG-8-10 200

Smallest selling unit: 4 piece

piece

DescriptionTechnical dataDownloadsAccessoriesVariants

Description

• Closed form with base

• With double conductor holder

• Filling weight 1 kg (frost-resistant concrete)

• Sleeve from polyethylene, black, UV-resistant and weatherproof

• Base made of polypropylene, black, UV-resistant and weather-resistant

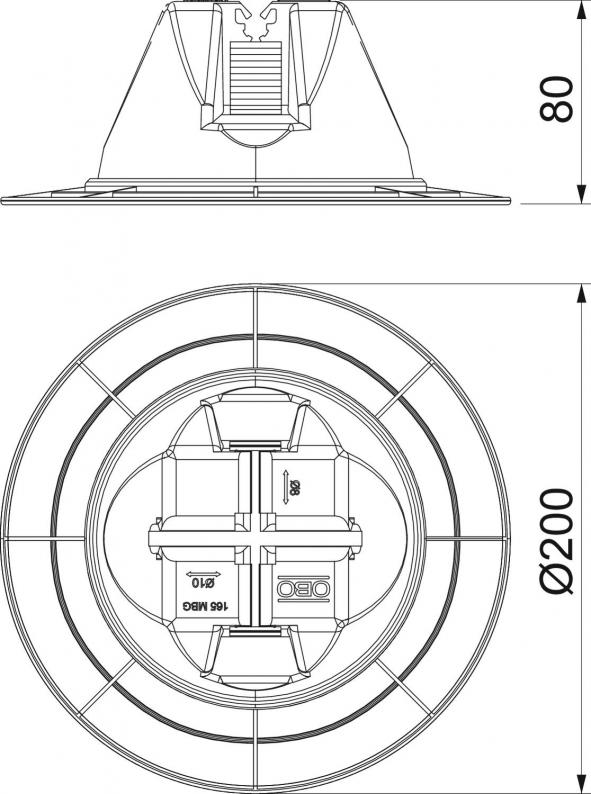

• With larger base section (Ø 200 mm) for better stability
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

Technical data

Dimensions

Length200 mm

Materials and Packaging

Packaging made completely from recycled cardboard.yes
Packaging without plasticyes

Technical data

Conductor diameter, min.8
Conductor diameter, max.10
Conductor fastening typeWith clip
ApplicationFlat roof
Mounting typeMiscellaneous
FitRd 8-10 mm
Dimension8-10mm
MaterialPolypropylene/Polyethylene
ColourBlack

CO2 footprint (Product Carbon Footprint)

CO2 Footprint (GWP) Cradle-to-Gate0,6741 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (3)
Declarations (2)
Product images (2)
Tender specifications (2)

Accessories

System accessories
Type
165 MBG UH

Smallest selling unit: 25 piece

piece

Type
165 MBG HFL

Smallest selling unit: 12 piece

piece

Type
165 MBG HGRM

Smallest selling unit: 50 piece

piece

Variants

165 MBG-8-10 200
Item no.
5218716
Length
200
Fit
Rd 8-10
