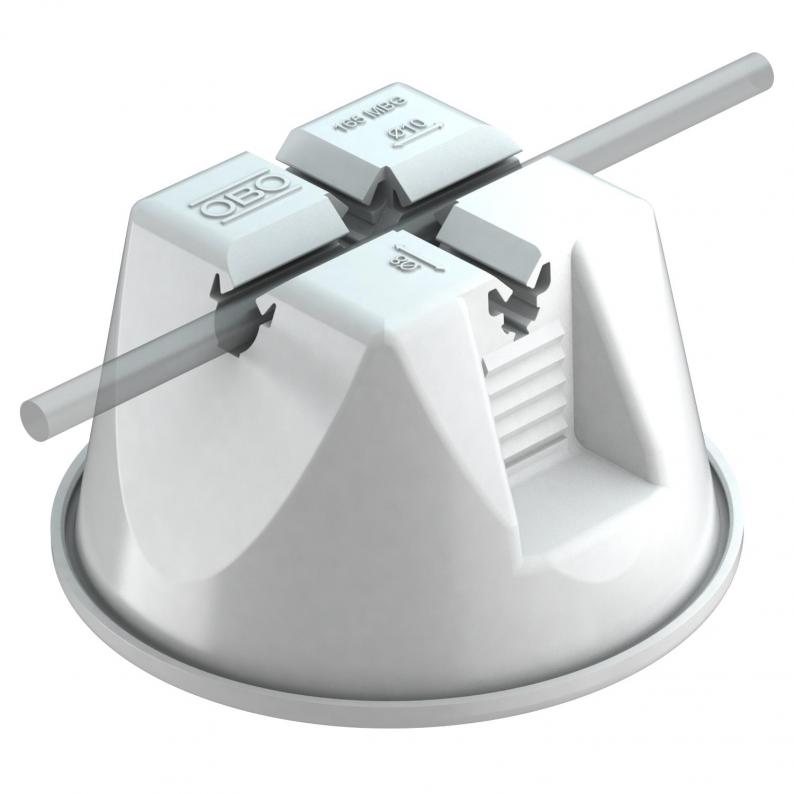

165 MBG... roof cable holder for flat roofs, grey, with concrete

165 MBG... roof cable holder for flat roofs, grey, with concrete

Type 165 MBG-8-10 GR
|
Item no. 5218708
|
EAN 4012196648313
Show all variants
Item no. / Type
5218708 / 165 MBG-8-10 GR

Smallest selling unit: 12 piece

piece

DescriptionTechnical dataDownloadsAccessoriesVariants

Description

• Closed form with base

• With double conductor holder

• Filling weight 1 kg (frost resistant concrete)

• Case made from polyethylene, light grey, UV-resistant and weatherproof

• Base made from polyamide PA 6, light grey, UV-resistant and weatherproof

• Base suitable for nearly all roofing membrane systems (bitumen, PVC)
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

Technical data

Dimensions

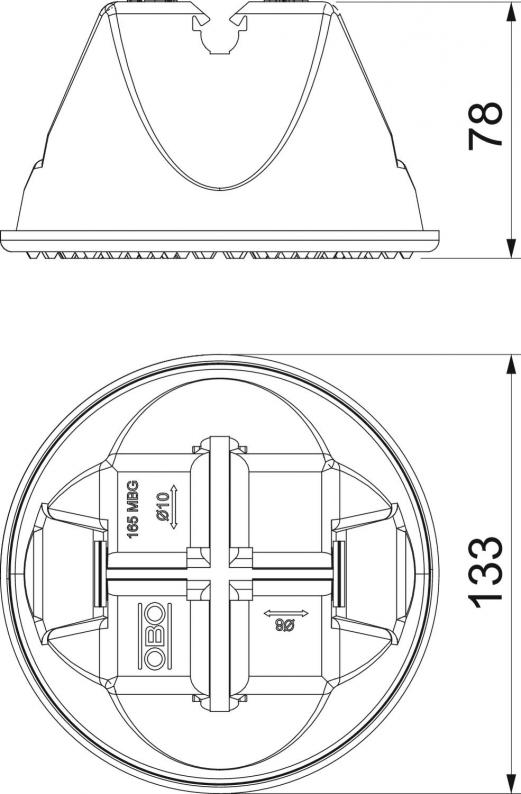

Length133,5 mm

Materials and Packaging

Packaging made completely from recycled cardboard.yes
Packaging without plasticyes

Technical data

Conductor diameter, min.8
Conductor diameter, max.10
Conductor fastening typeWith clip
ApplicationFlat roof
Mounting typeMiscellaneous
FitRd 8-10 mm
Dimension8-10mm
MaterialPolyamide/Polyethylene
ColourGrey

CO2 footprint (Product Carbon Footprint)

CO2 Footprint (GWP) Cradle-to-Gate0,4732 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (3)
Declarations (2)
Product images (2)
3D data downloads (1)
Tender specifications (2)

Accessories

System accessories
Type
165 MBG UH

Smallest selling unit: 25 piece

piece

Type
165 MBG HFL

Smallest selling unit: 12 piece

piece

Type
165 MBG HGRM

Smallest selling unit: 50 piece

piece

Variants

165 MBG-8-10 GR
Item no.
5218708
Length
133,5
Fit
Rd 8-10
