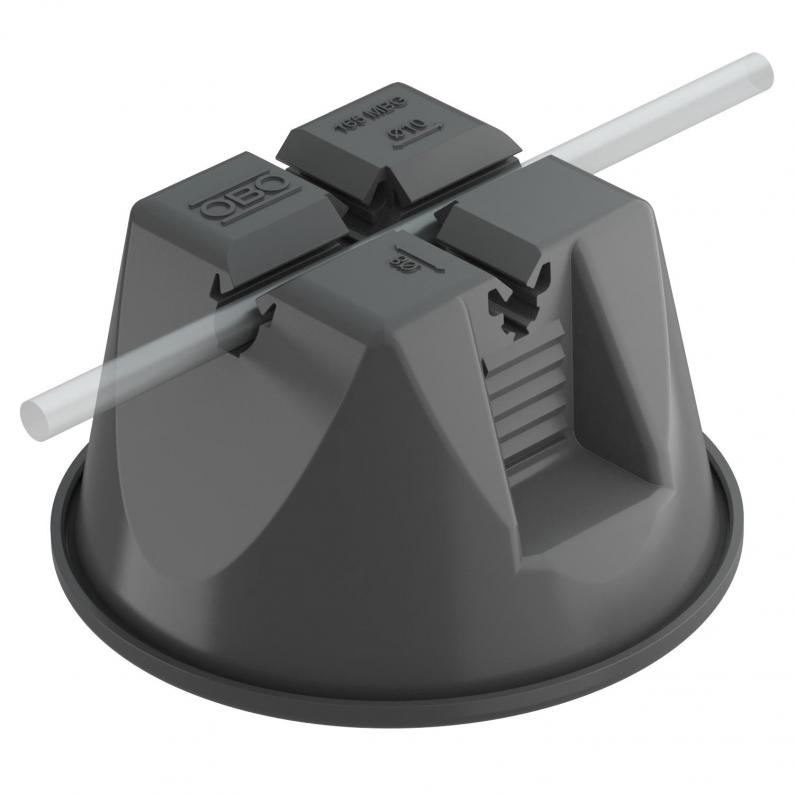

165 MBG... roof cable holder for flat roofs, black, with concrete

165 MBG... roof cable holder for flat roofs, black, with concrete

Type 165 MBG-8-10 | Item no. 5218700 | EAN 4012196648290

Show all variants
Item no. / Type
Fit

Smallest selling unit: 12 piece

DescriptionTechnical dataDownloadsAccessoriesVariants

Description

• Closed form with base
• With double conductor holder
• Filling weight 1 kg (frost-resistant concrete)
• Sleeve made of polyethylene, black, UV-resistant and weather-resistant
• Base made of polyamide PA 6, black, UV-resistant and weather-resistant
• Base can be used on almost all roofing felt systems (bitumen, PVC)
• Types 165 MBG...FO: Packed in foil bag
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

Technical data

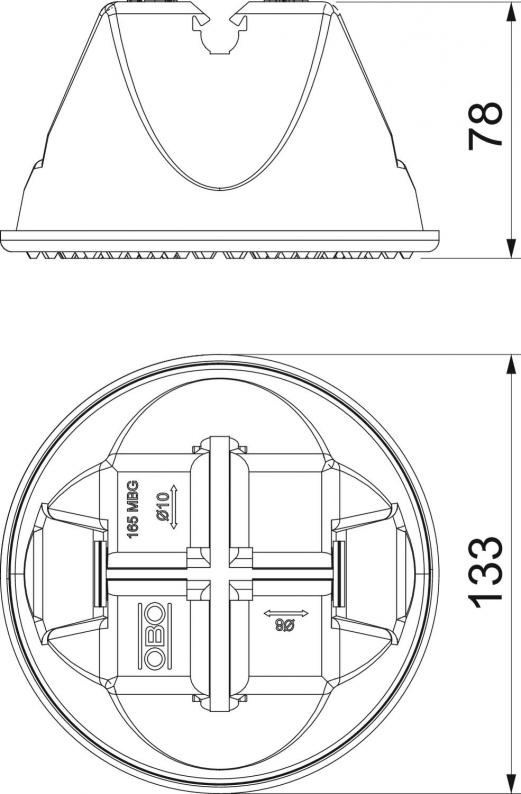

Dimensions

Height78 mm

Technical data

Conductor diameter, max.10
Conductor diameter, min.8
Conductor fastening typeWith clip
ApplicationFlat roof
Mounting typeMiscellaneous
FitRd 8-10 mm
Clamping range D, max.10 mm
Clamping range D, min.8 mm
Dimension8-10mm
MaterialPolyamide/Polyethylene
ColourBlack
CO2 Footprint (GWP) Cradle-to-Gate0,4786 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (4)
Declarations (2)
Certificates (1)
Instructions and Aid (2)
Product images (4)
3D data downloads (1)
Tender specifications (2)

Accessories

System accessories
Type
165 MBG UH

Smallest selling unit: 25 piece

Type
165 MBG HFL

Smallest selling unit: 12 piece

Type
165 MBG HGRM

Smallest selling unit: 50 piece

Variants

Fit
165 MBG-8-10
Item no.
5218700
Fit
Rd 8-10
165 MBG-8-10 FO
Item no.
5218704
Length
133,5
Fit
Rd 8-10
165 MBG-6SO
Item no.
5218780
Length
133,5
Fit
Rd 6
