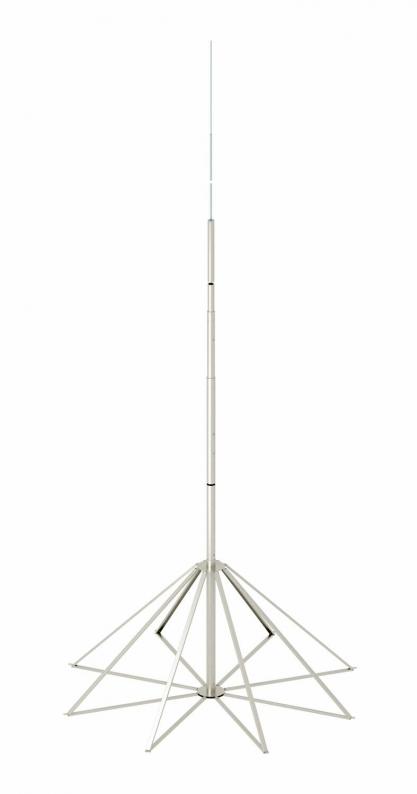

14 m air-termination rod with 8-legged air-termination rod stand
Type irod 14 | Item no. 5400814 | EAN 4012196219353
Item no. / Type
5400814 / irod 14
Smallest selling unit: 1 piece
1piece
Description
• Tele lightning protection system against direct lightning strikes into plants, such as biogas plants, gas pressure regulation plants, control and greenfield photovoltaic systems
• Consisting of air-termination rod and air-termination rod stand
• Please order concrete foot, edge protection and threaded rods separately
• Consisting of air-termination rod and air-termination rod stand
• Please order concrete foot, edge protection and threaded rods separately
Technical data

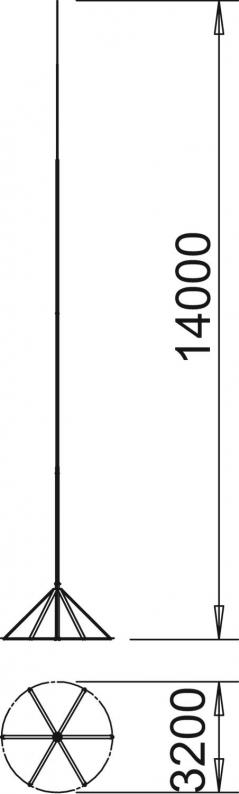

Dimensions
| Length | 14000 mm |
|---|---|
| Dimension L | 14000 mm |
| Dimension B | 3200 mm |
| Dimension d min. | 85 mm |
Technical data
| High voltage-resistant, insulated version | no |
|---|---|
| Connection | Round conductor |
| Version for | Air-termination rod with stand |
| Dimension | 14000mm |
| Material | Stainless steel 1.4301 |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Instructions and Aid (1)
Product images (2)
3D data downloads (2)
Tender specifications (2)
Variants
Type
Length
Item no.
irod 14
14000
5400814
irod 14
Item no.
5400814
Length
14000
