110 FT cross-over
Type RK 140 FT | Item no. 7115407 | EAN 4012196244454
Item no. / Type
7115407 / RK 140 FT
This item is a discontinued product!
You can find the successor product here.
Smallest selling unit: 1 piece
1piece
Description

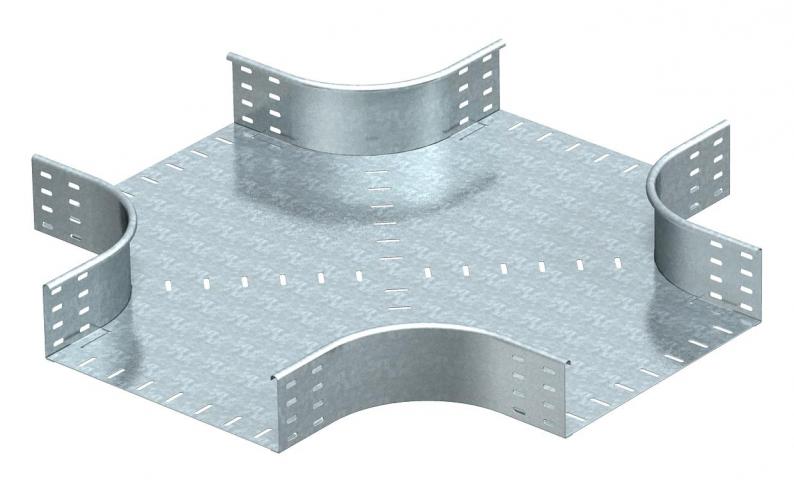

Horizontal cross-over for all cable tray types of 110 mm side height.
Fastening materials should be ordered separately.
Technical data

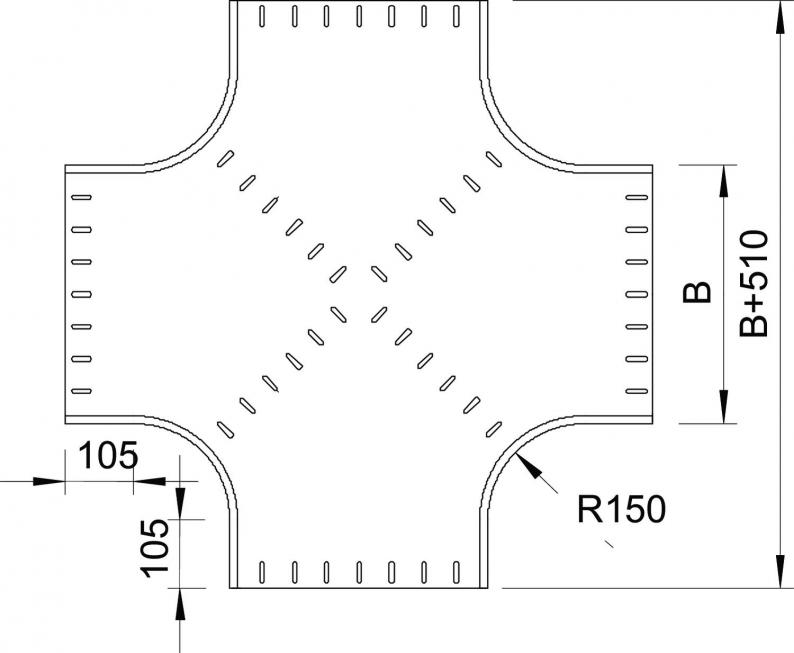

Dimensions
| Width | 400 mm |
|---|---|
| Height | 110 mm |
| Dimension R | 150 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Wide-span version | no |
| Rustproof steel, pickled | no |
| Material thickness, floor plate | 1,5 mm |
| Bend (angle) | 90° |
| Change of direction | Horizontal |
| Rail thickness | 1,25 mm |
| Dimension | 110x400 |
| Surface | Hot-dip galvanised |
| Material | Steel |
| Type of connector, cable support system | Screwed |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (3)
Instructions and Aid (2)
Product images (2)
Tender specifications (2)
Variants
Type
Width
Item no.
RK 140 FT
400
7115407
RK 140 FT
Item no.
7115407
Width
400
