110 FT cross-over
Type RK 130 FT | Item no. 7115318 | EAN 4012196811939
Item no. / Type
7115318 / RK 130 FT
This item is a discontinued product!
You can find the successor product here.
Smallest selling unit: 1 piece
1piece
Description

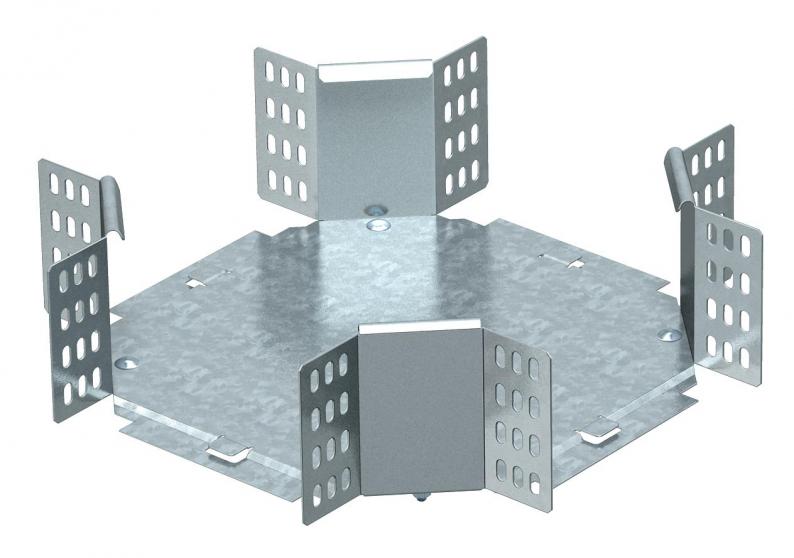

Horizontal cross-over for all cable tray types of 110 mm side height.
The fitting is shipped in an unmounted state. Including appropriate fastening material.
Technical data

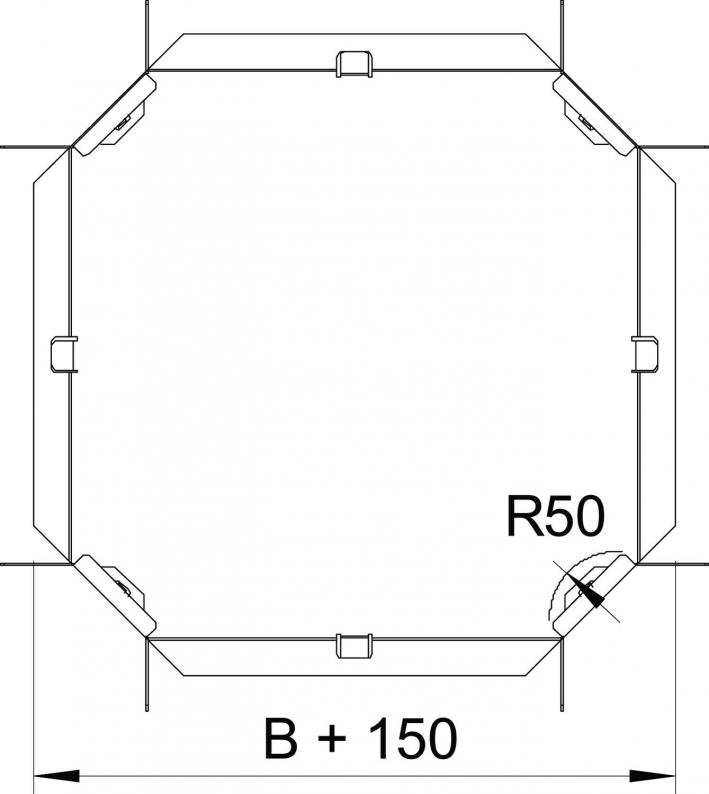

Dimensions
| Width | 300 mm |
|---|---|
| Height | 110 mm |
| Dimension B | 300 mm |
| Dimension R | 50 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Connector version | Supplied connectors |
| Wide-span version | no |
| Rustproof steel, pickled | no |
| Material thickness, floor plate | 1 mm |
| Bend (angle) | 90° |
| Change of direction | Horizontal |
| Rail thickness | 1,25 mm |
| Dimension | 110x300 |
| Surface | Hot-dip galvanised |
| Material | Steel |
| Type of connector, cable support system | Screwed |
