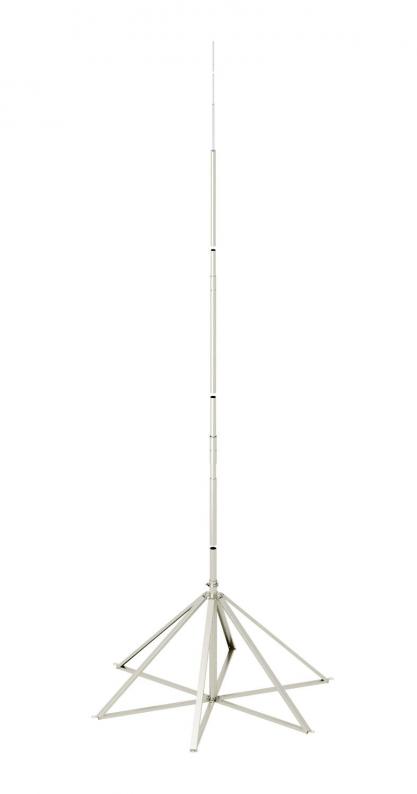

10 m air-termination rod with 6-legged air-termination rod stand
Type irod 10 | Item no. 5400810 | EAN 4012196219339
Item no. / Type
5400810 / irod 10
Smallest selling unit: 1 piece
1piece
Description
• Tele lightning protection system against direct lightning strikes into plants, such as biogas plants
• Consisting of air-termination rod and air-termination rod stand
• Please order concrete foot, edge protection and threaded rods separately
• Consisting of air-termination rod and air-termination rod stand
• Please order concrete foot, edge protection and threaded rods separately
Technical data

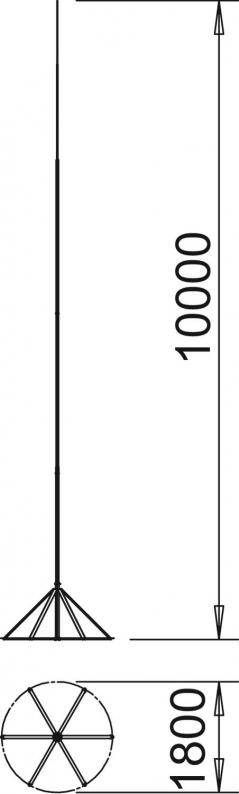

Dimensions
| Length | 10000 mm |
|---|---|
| Dimension L | 10000 mm |
| Dimension B | 1800 mm |
| Dimension d min. | 48,3 mm |
Technical data
| High voltage-resistant, insulated version | no |
|---|---|
| Connection | Round conductor |
| Version for | Air-termination rod with stand |
| Dimension | 10000mm |
| Material | Stainless steel 1.4301 |
