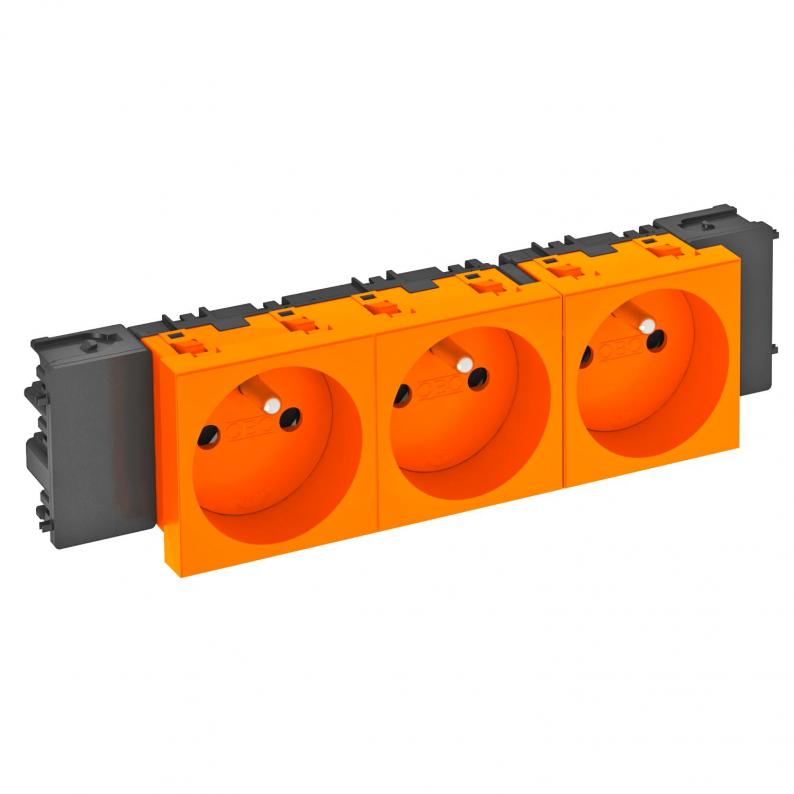

0° socket, Connect 45, with earthing pin, triple

0° socket, Connect 45, with earthing pin, triple

Type STD-F0C ROR3 | Item no. 6120574 | EAN 4012196051038

Show all variants
Item no. / Type
Colour
Number of units
3
Version for
Triple 0°

Smallest selling unit: 1 piece

DescriptionTechnical dataDownloadsVariants

Description

Earthing pin socket with connection to side, Triple 0°, with increased touch protection, with screwless terminals, 2-pin, 16 A, 250 V~, with connection terminals to IEC 60884-1, suitable for the installation in Rapid 45 device installation trunking systems.
For installation in Rapid 45 trunking, device installation trunking, service poles, underfloor systems and desk boxes.


  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

Technical data

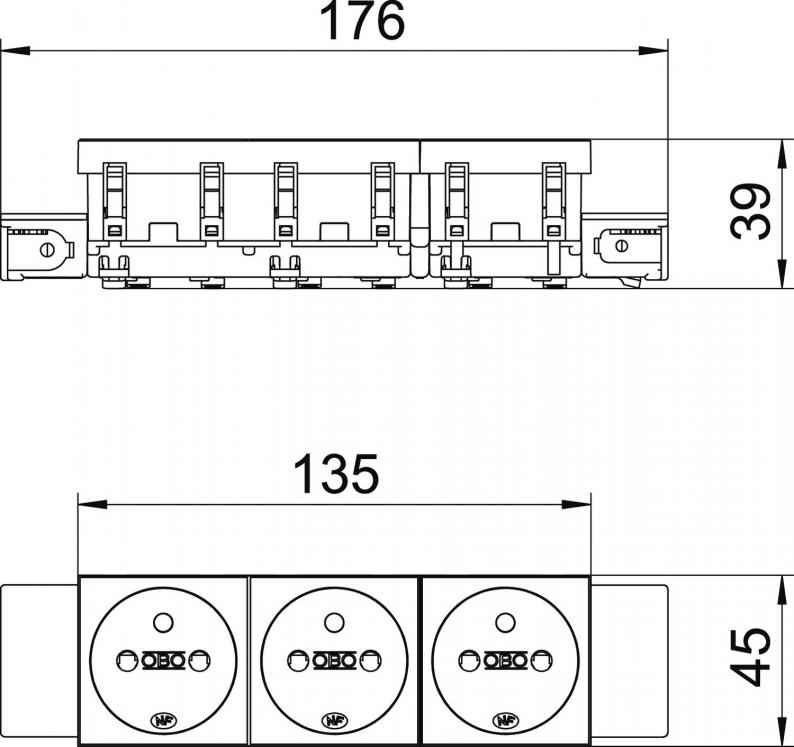

Dimensions

Width176 mm
Height45 mm

Technical data

Number of poles2
Hinged coverno
increased touch protectionyes
Warning lightno
Halogen-freeyes
Labelling panelno
Number of units3
Protection ratingOther
Nominal current16 A
Nominal voltage250 V
Closableno
Ejection mechanismno
Surge protectionno
Error current protectionno
With fine-wire fuseno
With on/off switchno
Rotated central insertno
Depth39 mm
CoverCentral plate
Printed label/codingWithout printing
Special power supplyWithout special power supply
Surface versionMatt
Transparentno
Socket angle0°
Socket versionNF
Number of switchable sockets0
With functional lightingno
With orientation lightingno
For more difficult conditions (according to VDE)no
ApprovalsVDE
Version forTriple 0°
Number of modules (for modular construction)0
Insulated installationno
Mounting typeDevice installation duct
Fastening typeLock
Connection typeScrewless terminal
Operating temperature, max.40 °C
Operating temperature, min.-5 °C
Codingno
Dimension250V, 10/16A
MaterialPolycarbonate
ColourPure orange; RAL 2004
CO2 Footprint (GWP) Cradle-to-Gate0,5195 kg CO₂e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (1)
Declarations (3)
Product images (2)
Tender specifications (2)

Variants

Colour
STD-F0C RW3
Item no.
6120572
Number of units
3
Version for
Triple 0°
Colour
Pure white; RAL 9010
STD-F0C ROR3
Item no.
6120574
Number of units
3
Version for
Triple 0°
Colour
Pure orange; RAL 2004
STD-F0C MZGN3
Item no.
6120576
Number of units
3
Version for
Triple 0°
Colour
Mint green; RAL 6029
STD-F0C SRO3
Item no.
6120578
Number of units
3
Version for
Triple 0°
Colour
Signal red; RAL 3001
STD-F0C SWGR3
Item no.
6120580
Number of units
3
Version for
Triple 0°
Colour
Black-grey; RAL 7021
STD-F0C AL3
Item no.
6120582
Number of units
3
Version for
Triple 0°
Colour
Aluminium painted
