Clamp clip, single, FT plastic pressure trough
Type 2056F 46 FT
|Item no. 1169467
|EAN 4012195070993
Item no. / Type
Max. Tightening torque
Clamping range D, min.
Clamping range D, max.
This item is a discontinued product!
You can find the successor product here.
Smallest selling unit: 100 piece
100piece
piece
Description
Suitable for flat, bracket and U irons of 4–12 mm material thickness.
Clip and bolt made of hot-dip galvanised steel.
Polypropylene pressure trough, halogen-free, colour light grey RAL 7035.
Version with welding and/or locknuts for use under difficult circumstances and for shake protection on request.
Clip and bolt made of hot-dip galvanised steel.
Polypropylene pressure trough, halogen-free, colour light grey RAL 7035.
Version with welding and/or locknuts for use under difficult circumstances and for shake protection on request.
Technical data
Technical data
| For pipe diameter, min. | 40 mm |
|---|---|
| For pipe diameter, max. | 40 mm |
| Impact-resistant | no |
| Halogen-free | yes |
| With plastic trough | yes |
| With metal trough | no |
| Number of cables/pipes | 1 |
| Surface addition | hot galvanised |
| Material addition | Steel |
| Max. Tightening torque | 5 Nm |
| Mounting type | Flat profile |
| for 1 cable H | 80 mm |
| for 1 cable L | 37,5 |
| for 2 cable H | 128 mm |
| for 2 cable L | 44,5 mm |
| for 3 cable L | 56,5 mm |
| for 3 cable H | 177 mm |
| Clamping range D, min. | 40 mm |
| Clamping range D, max. | 46 mm |
| Dimension | 40-46mm |
| Surface | Hot-dip galvanised |
| Material | Steel |
| With counter-trough | no |
| Material of trough | Plastic |
| Material quality of trough | Polypropylene |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,15 kg CO₂e / 1 Piece |

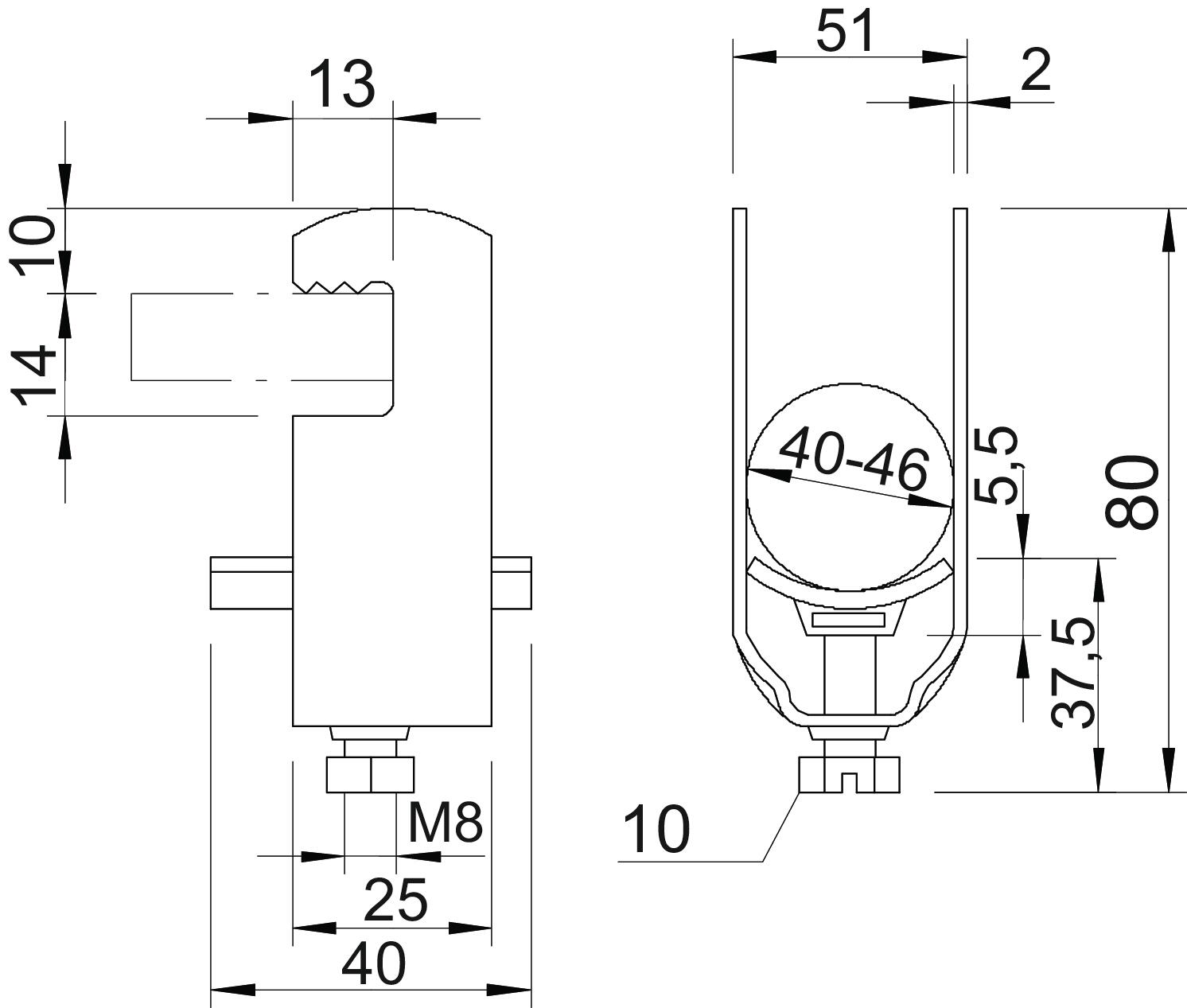

Dimensions
| Dimension L | 37,5 mm |
|---|---|
| Dimension A | 25 mm |
| Dimension B | 51 mm |
| Dimension H | 80 mm |
| Dimension t | 2 mm |
| Dimension C | 40 mm |
| Dimension x | 5,5 mm |
| Dimension G (mm) | M8 |
| Dimension E | 13 mm |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (1)
Declarations (3)
Product images (2)
3D data downloads (1)
Tender specifications (1)
Variants
Type
Max. Tightening torque
Clamping range D, min.
Clamping range D, max.
Item no.
2056F 12 FT
3
8
12
1169122
2056F 16 FT
3
12
16
1169165
2056F 22 FT
3
16
22
1169211
2056F 28 FT
3
22
28
1169289
2056F 40 FT
5
34
40
1169408
2056F 46 FT
5
40
46
1169467
2056F 64 FT
5
58
64
1169645
2056F 29 FT
22
29
1171895
Max. Tightening torque
Clamping range D, min.
Clamping range D, max.
2056F 12 FT
Item no.
1169122
Max. Tightening torque
3
Clamping range D, min.
8
Clamping range D, max.
12
2056F 16 FT
Item no.
1169165
Max. Tightening torque
3
Clamping range D, min.
12
Clamping range D, max.
16
2056F 22 FT
Item no.
1169211
Max. Tightening torque
3
Clamping range D, min.
16
Clamping range D, max.
22
2056F 28 FT
Item no.
1169289
Max. Tightening torque
3
Clamping range D, min.
22
Clamping range D, max.
28
2056F 40 FT
Item no.
1169408
Max. Tightening torque
5
Clamping range D, min.
34
Clamping range D, max.
40
2056F 46 FT
Item no.
1169467
Max. Tightening torque
5
Clamping range D, min.
40
Clamping range D, max.
46
2056F 64 FT
Item no.
1169645
Max. Tightening torque
5
Clamping range D, min.
58
Clamping range D, max.
64
2056F 29 FT
Item no.
1171895
Clamping range D, min.
22
Clamping range D, max.
29
